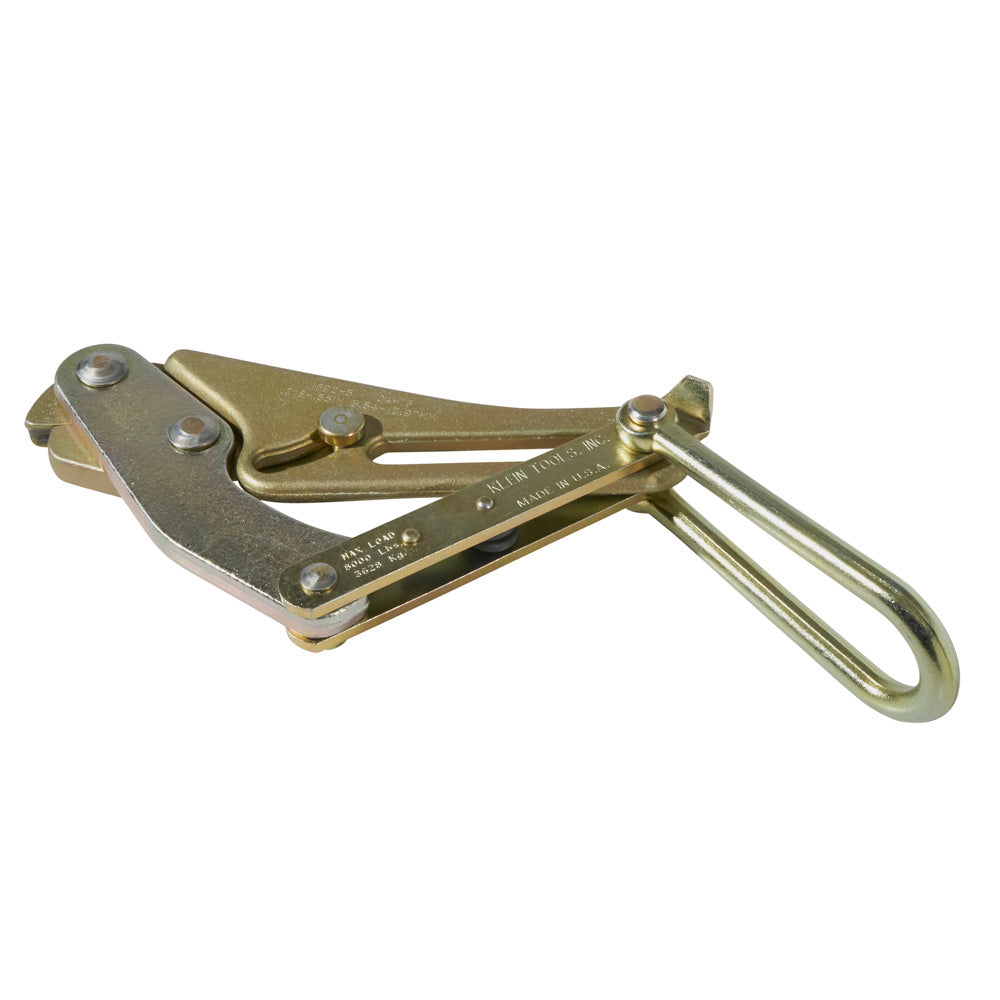

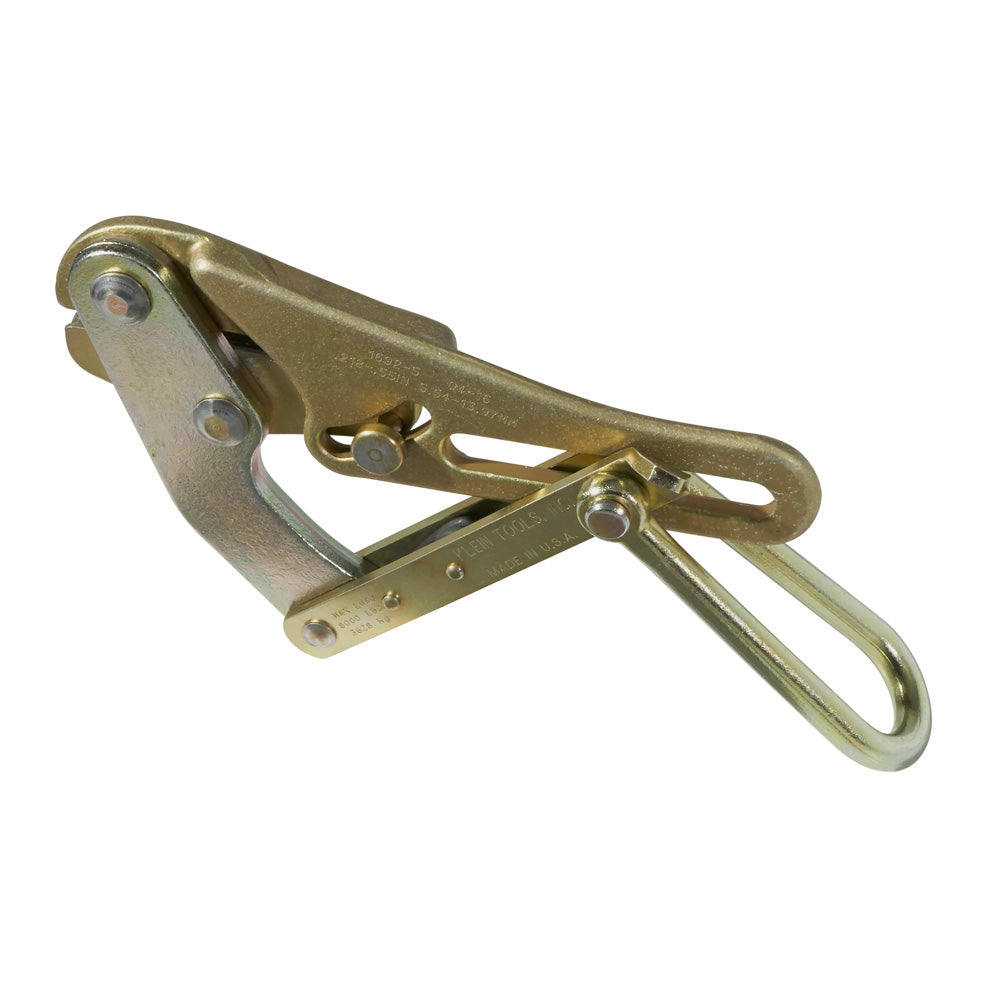

Grip for High Strength Cables 0.218-Inch
- Free Shipping - U.S. Only
- In stock, ready to ship
- Backordered, shipping soon
Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.218-Inch to 0.55-Inch (5.54 to 13.97 mm). When pulling EHS (extra-high-strength) galvanized-steel cable, the galvanizing has a tendency to coat the jaws of any grip, causing the cable to slip. Double V contour reduces the possibility of slippage and damage to the cable.
Features
- Designed for cable sizes from 0.218-Inch to 0.55-Inch (5.54 to 13.97 mm)
- Double ''V'' grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
- For larger conductors, see our grips with round inside-jaw contour
- Manufactured from drop-forged, heat-treated steel for excellent durability
- Made in USA
Specifications
| Cable Type | Aircraft, EHS, Messenger, Guy Strand |
| Cable Diameter | 0.218" to 0.55" (5.54 to 13.97 mm) |
| Maximum Safe Load | 8000 lb (3629 kg) |
| Type | Chicago Grip |
| Jaw Type | Double V |
| Sub Brand | Chicago Grip |
| Weight | 5.4 lb (2.5 kg) |
| Application | Extra-High-Strength Cables, Messenger, Guy Strand |
| Jaw Length | 5" (12.7 cm) |
| Locking Handle | Y |
| Hot Latch | N |
| Spring | Y |
| Size_Name | 0.218 to 0.55-Inch Cable Diameter |
| Style_Name | Safe Load 8,000 lbs. |
| Swing Latch | N |
| Teeth Type | Smooth |
Warnings
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
- Do not exceed rated capacity.
- Grips are to be used for temporary installation, not for permanent anchorage.
