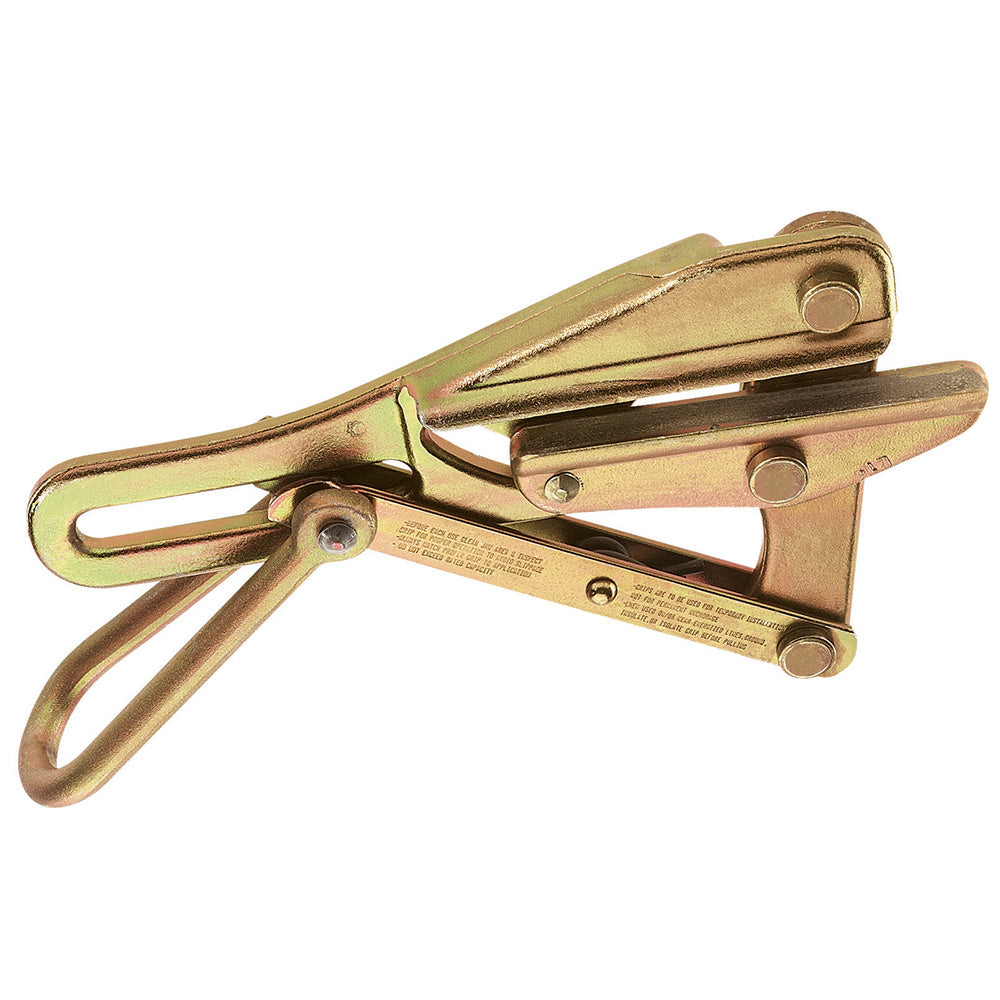

The Klein Tools Wide Range Transmission Grip was specifically designed to securely pull ACSR, AAC and bare copper cables. Holds a wide range of cable from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm). This grip has a maximum safe load of 12,000-Pound (5443 kg).
Features
Securely pulls ACSR, AAC and bare copper cables
Holds cable sizes from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm)
Fine Sawtooth jaw geometry provides greater grip strength
Spring closes grip on cable to hold the initial position
Made in the USA
Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
Max Safe Load of 12,000-Pound (5443 kg)
Patent pending design
Specifications
Locking Handle
Y
Standard
—
Overall Height
8.1" (20.6 cm)
Type
Parallel Jaw Grip
Cable Diameter
0.68" to 1.42" (17.3 to 36.1 mm)
Swing Latch
N
Special Features
One-Handed Grip
Spring
Y
Jaw Type
Round
Overall Width
2.4" (6.1 cm)
Jaw Length
4.85" (12.3 cm)
Material
Steel
Maximum Safe Load
12,000 lb (5443 kg)
Cable Type
ACSR, AAC, Bare Copper
Hot Latch
N
Weight
8.1 lb (3.7 kg)
Overall Length
13.1" (33.3 cm)
Application
Wire Pulling
Notes
—
Teeth Type
Fine
Warnings
Grips are to be used for temporary installation, not for permanent anchorage.
When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
Do not exceed rated capacity.
Do not exceed rated capacity.
Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
