Grip for High Strength Cables 0.5 to 0.75-Inch
- Free Shipping - U.S. Only
- In stock, ready to ship
- Backordered, shipping soon

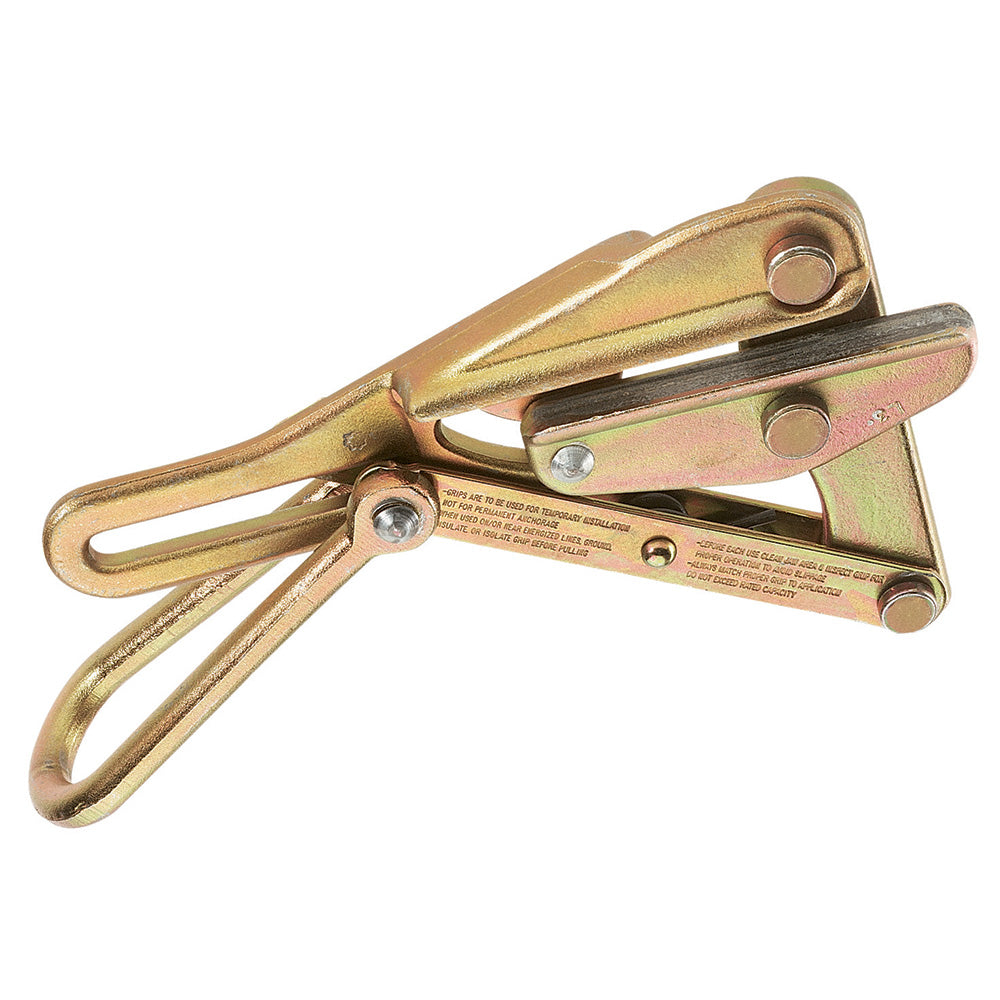

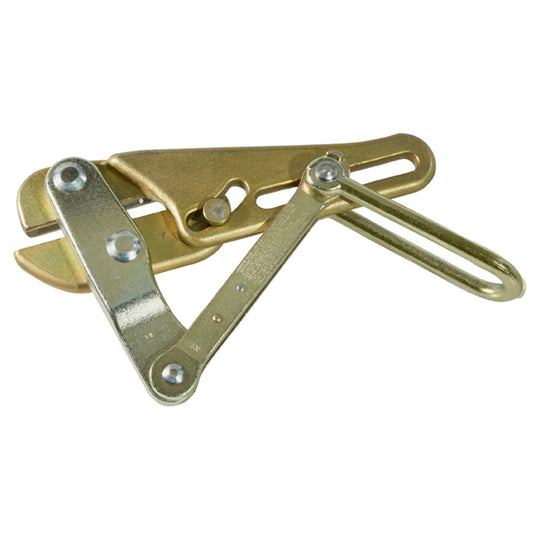

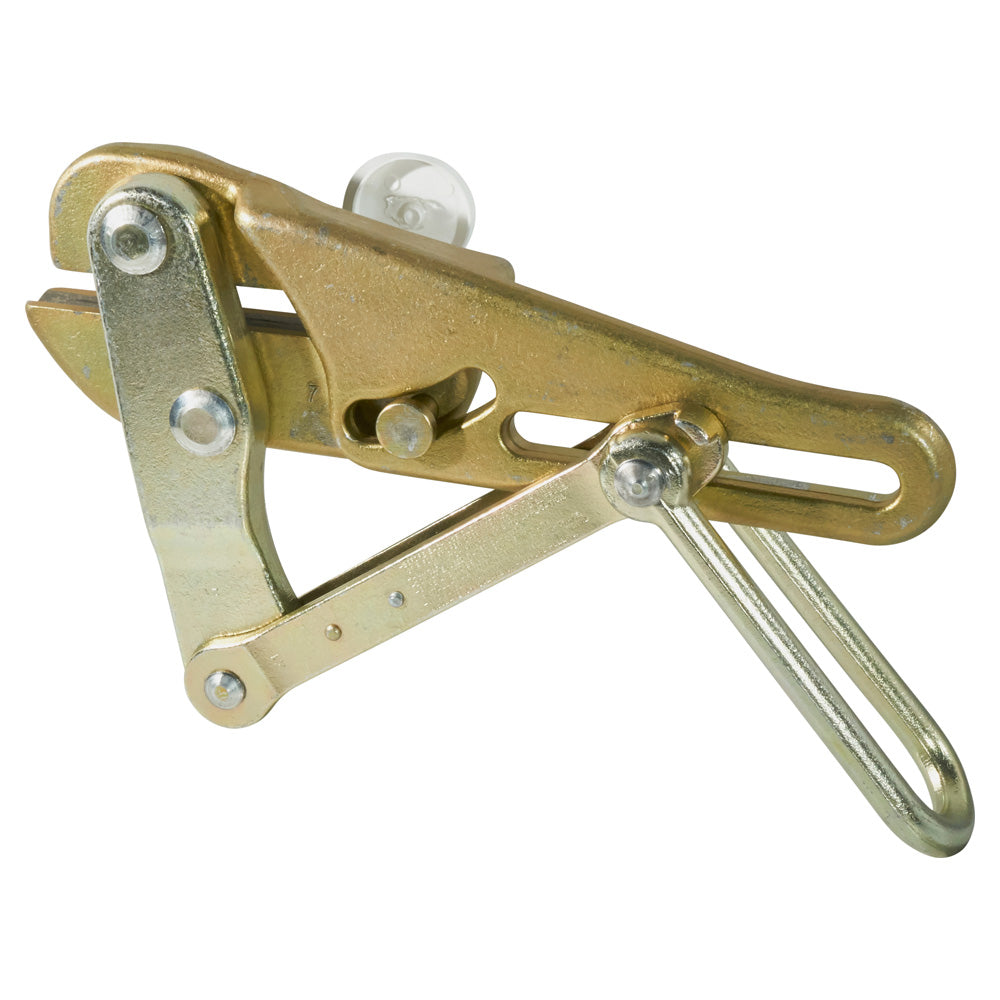

The Klein Tools 1628-17 Chicago Grip is designed for EHS, Messenger, and Guy Strand cable. The double V grooves provide four-point contact, which reduces chances of slipping and also provides proper alignment of wire and cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Features
- Used for Aircraft, EHS, Messenger, Guy Strand cables
- Designed for 0.50 to 0.75-Inch (12.7 to 19.05 mm) diameter cable sizes with max safe load of 15,000-Pound (6803 kg)
- Double ''V'' grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
- For larger conductors, see our grips with round inside-jaw contour
- Made in USA
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
Specifications
| Jaw Type | Double V |
| Jaw Length | 7.25" (18.4 cm) |
| Cable Type | Aircraft, EHS, Messenger, Guy Strand |
| Type | Chicago Grip |
| Application | Extra-High-Strength Cables, Messenger, Guy Strand |
| Maximum Safe Load | 15,000 lb (6803 kg) |
| Cable Diameter | 0.5" to 0.75" (12.7 to 19.05 mm) |
| Sub Brand | Chicago Grip |
| Weight | 14.6 lb (6.6 kg) |
| Locking Handle | Y |
| Hot Latch | N |
| Spring | N |
| Size_Name | 0.50 to 0.75-Inch Cable Diameter |
| Style_Name | Safe Load 15,000 lb |
| Swing Latch | N |
| Teeth Type | Smooth |
Warnings
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
- Do not exceed rated capacity.
- Grips are to be used for temporary installation, not for permanent anchorage.
