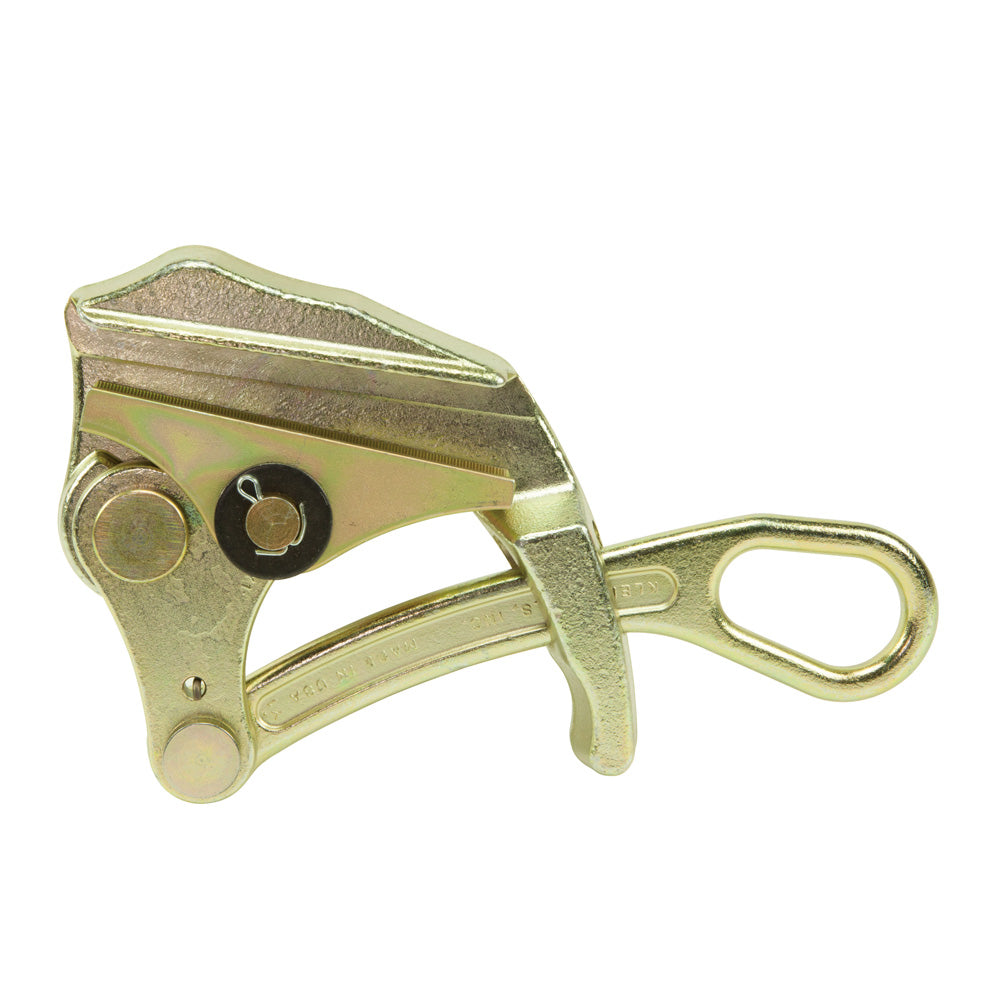

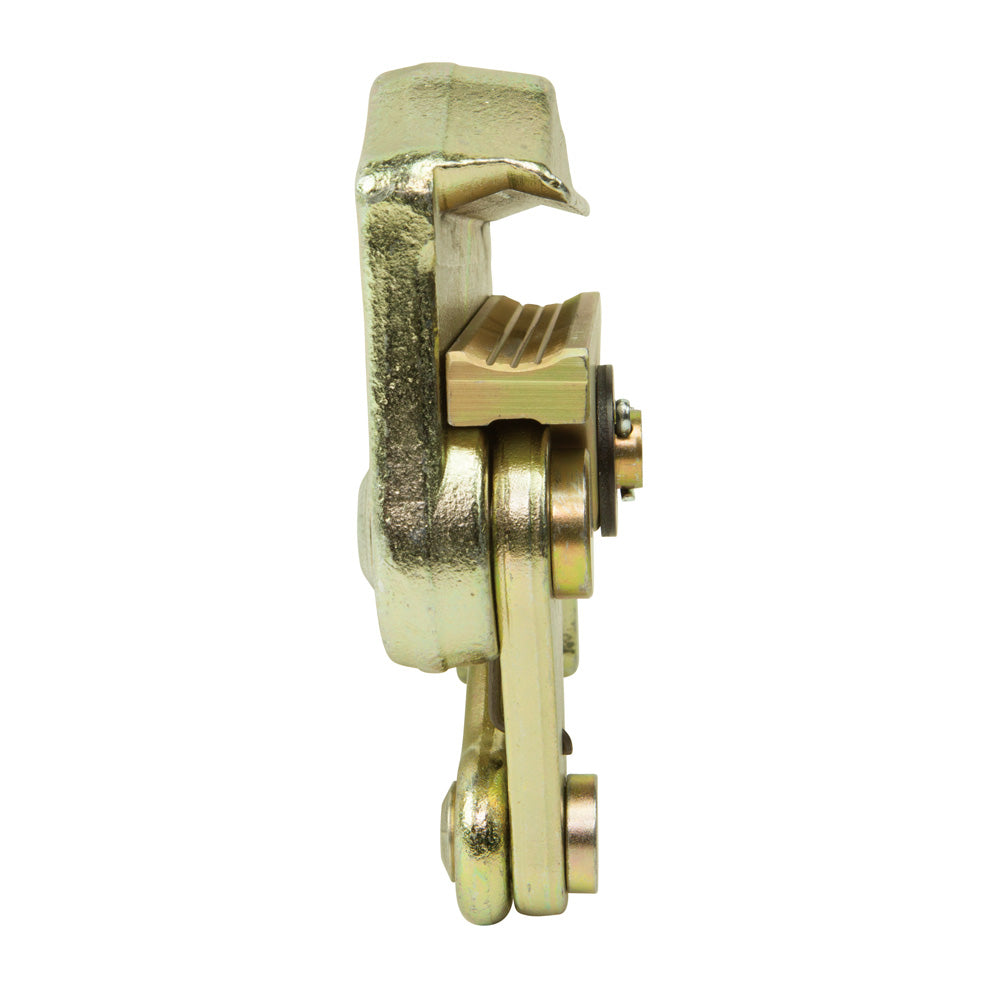

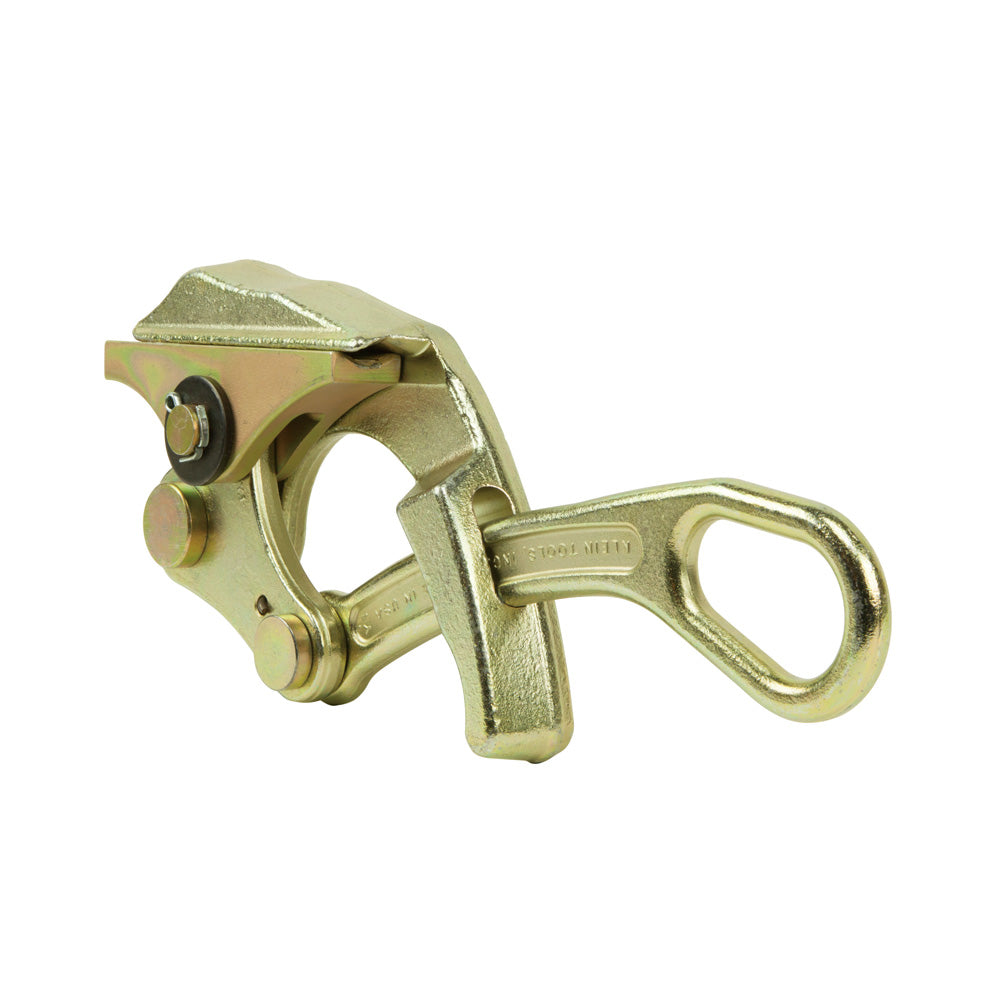

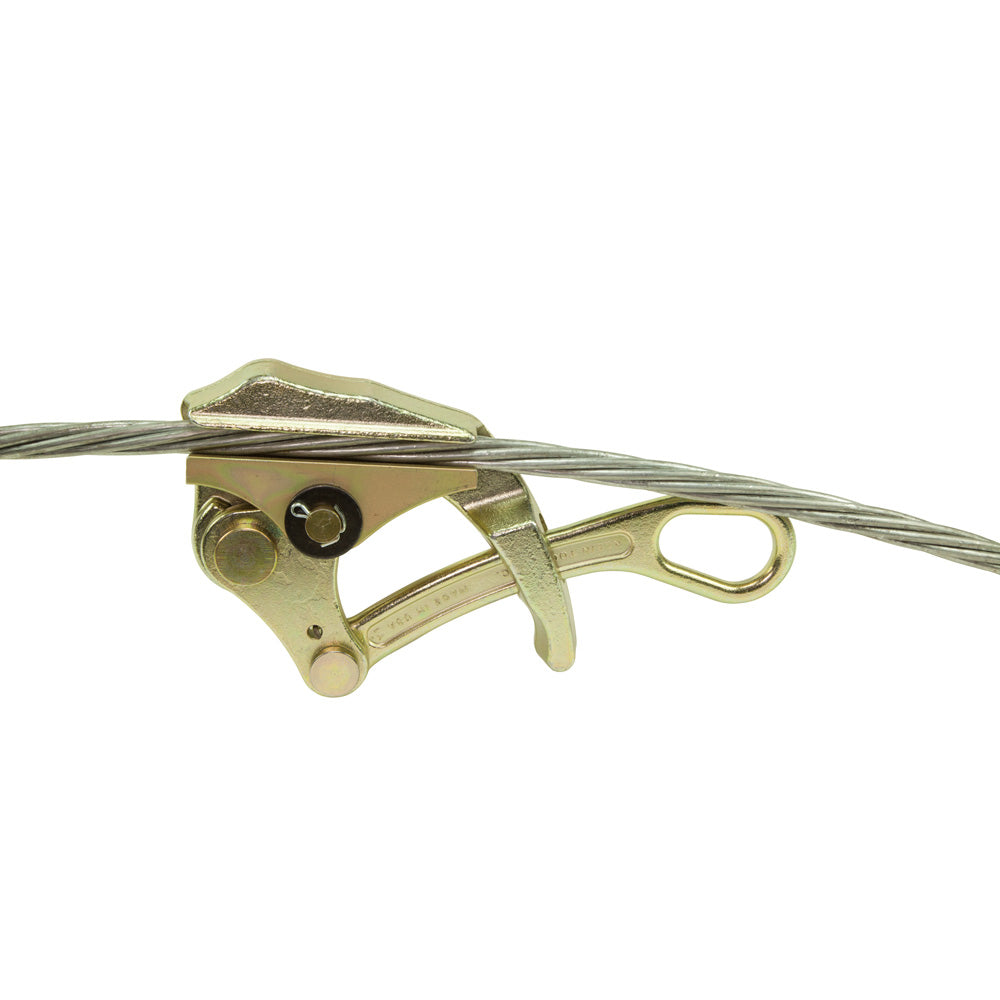

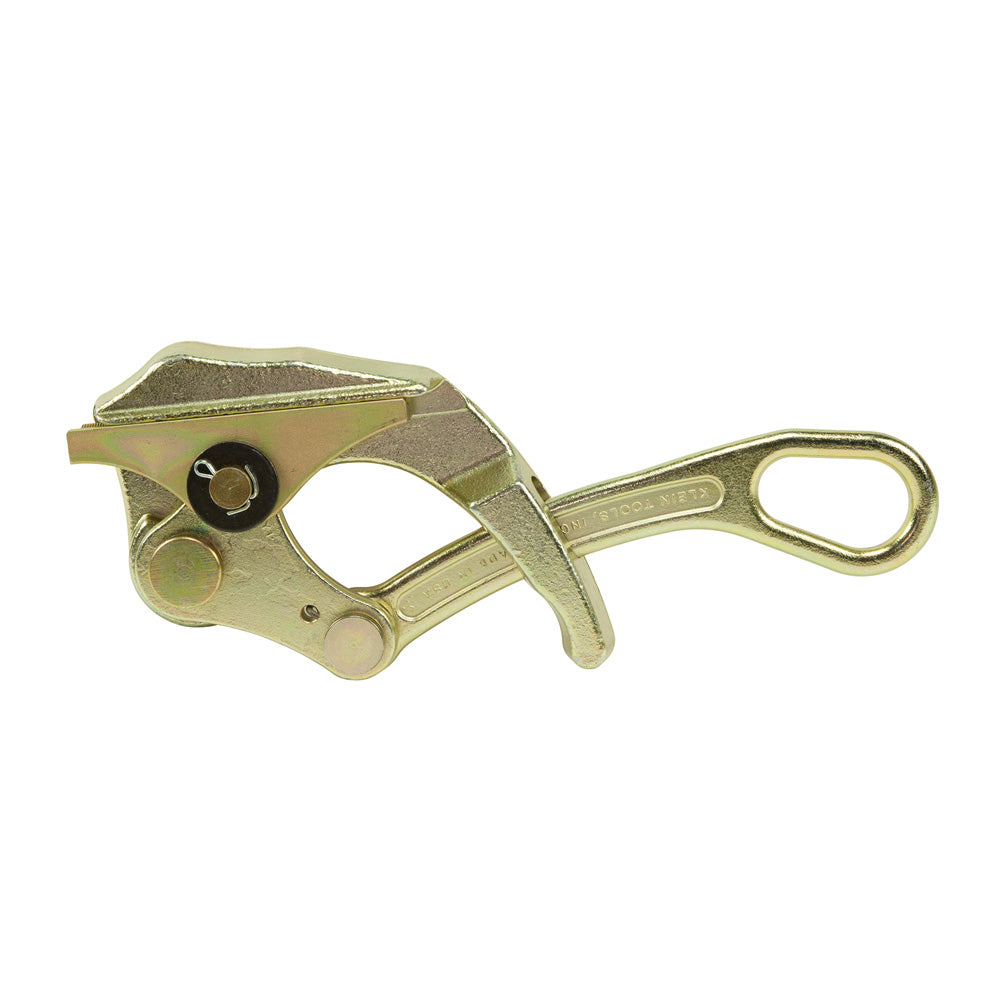

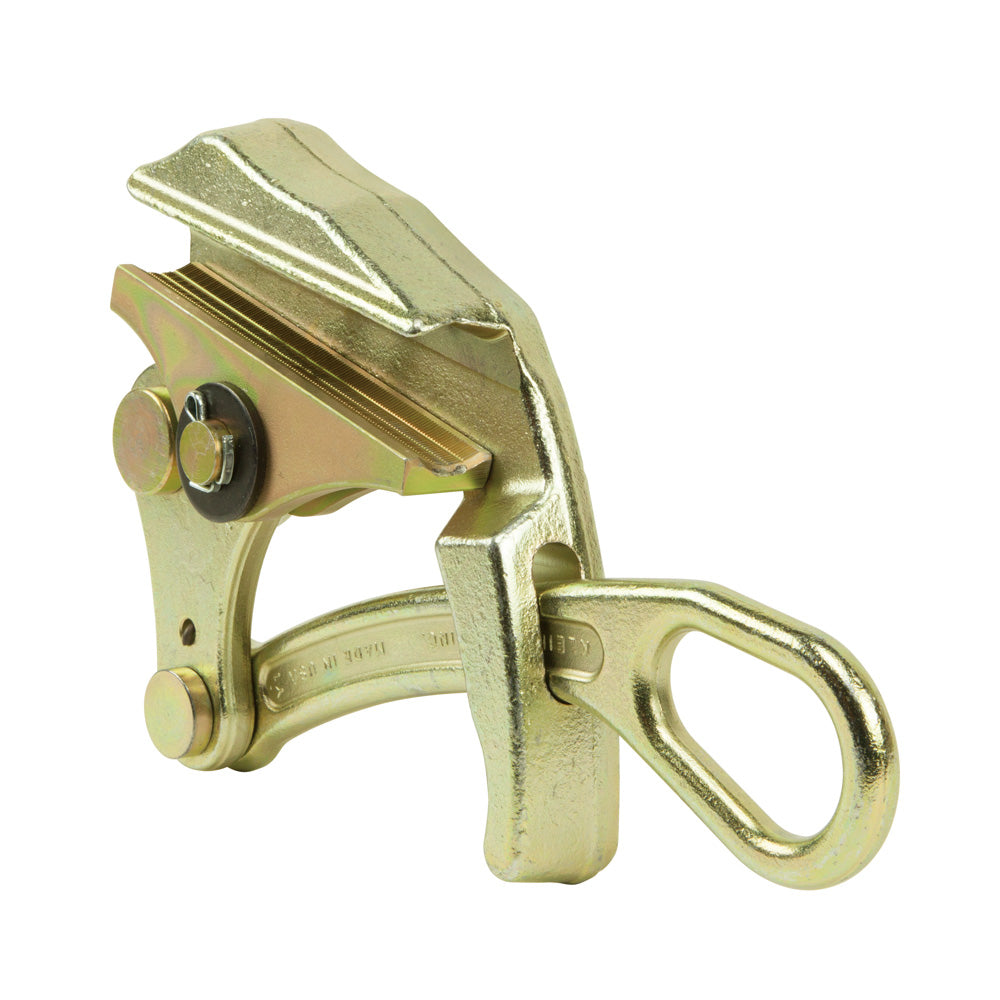

This lightweight, compact grip pulls guy strand and EHS cable sizes from 0.3-Inch to 0.8-Inch (8 to 20 mm). Designed with a round inside-jaw contour for maximum contact to minimize conductor damage. The aggressive jaw prevents slipping on guy strand. Spring-loaded for easy one-handed operation.
Features
Pulls 5/16-Inch to 3/4-Inch steel cables
For use on guy strand and EHS cable sizes from 0.3 to 0.8 inches (8 - 20 mm)
Sawtooth jaw profile resists build-up from galvanized coating on guy strand and EHS cables and spring helps maintain cable position in grips jaw
5-Inch (127 mm) jaw length increases surface area contact with the cable
Made in USA
Specifications
Cable Type
Guy Strand, EHS, Coated
Weight
7.0 lb (3.2 kg)
Type
Parallel Jaw Grip
Special Features
Round Inside-jaw Contour
Application
Wire Pulling
Cable Diameter
0.3" to 0.8" (7.62 to 20.3 mm)
Jaw Type
Round
Material
Steel
Jaw Length
5" (12.7 cm)
Overall Length
11.365" (28.9 cm)
Maximum Safe Load
10,000 lb (4536 kg)
Hot Latch
N
Spring
Y
Locking Handle
N
Swing Latch
N
Teeth Type
Coarse
Warnings
Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
When used on/near energized lines, ground, insulate, or isolate grip before pulling.
Do not exceed rated capacity.
Do not exceed rated capacity.
