Parallel Jaw Grip 4802 Series with Hot Latch
- Free Shipping - U.S. Only
- In stock, ready to ship
- Backordered, shipping soon

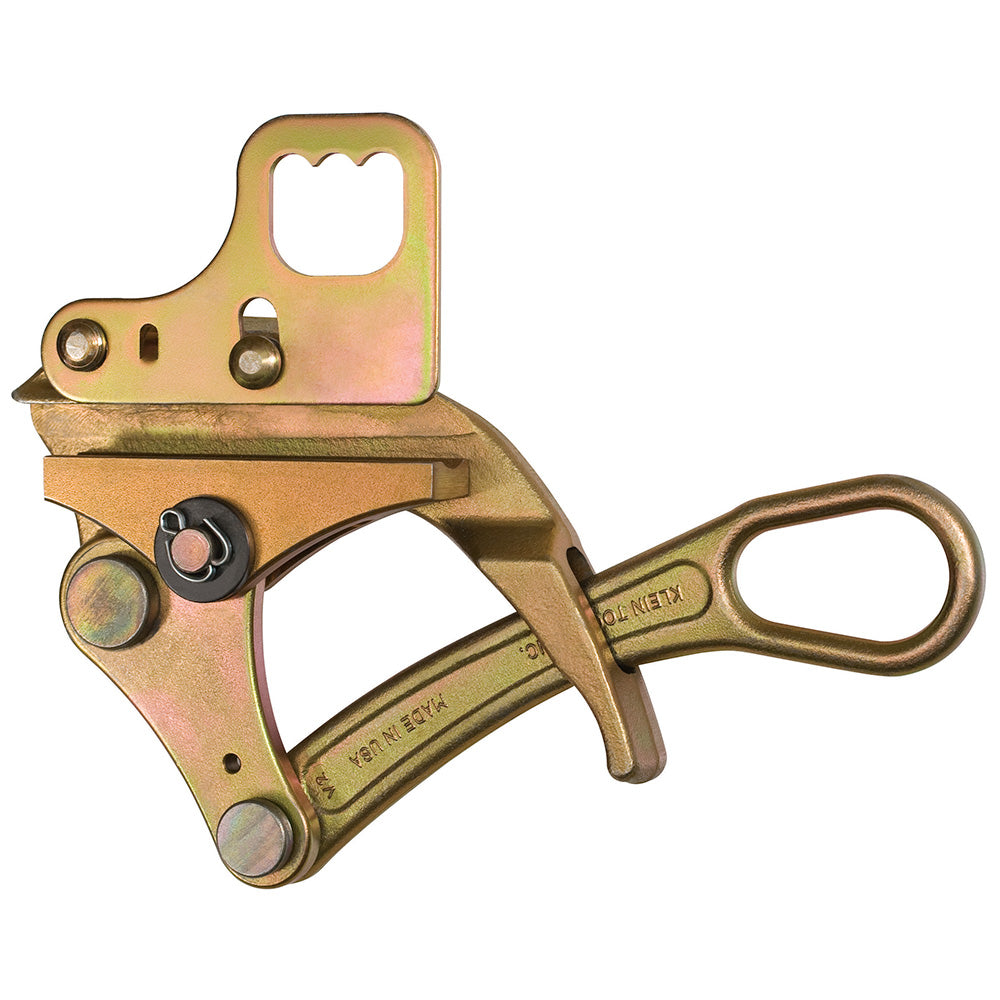

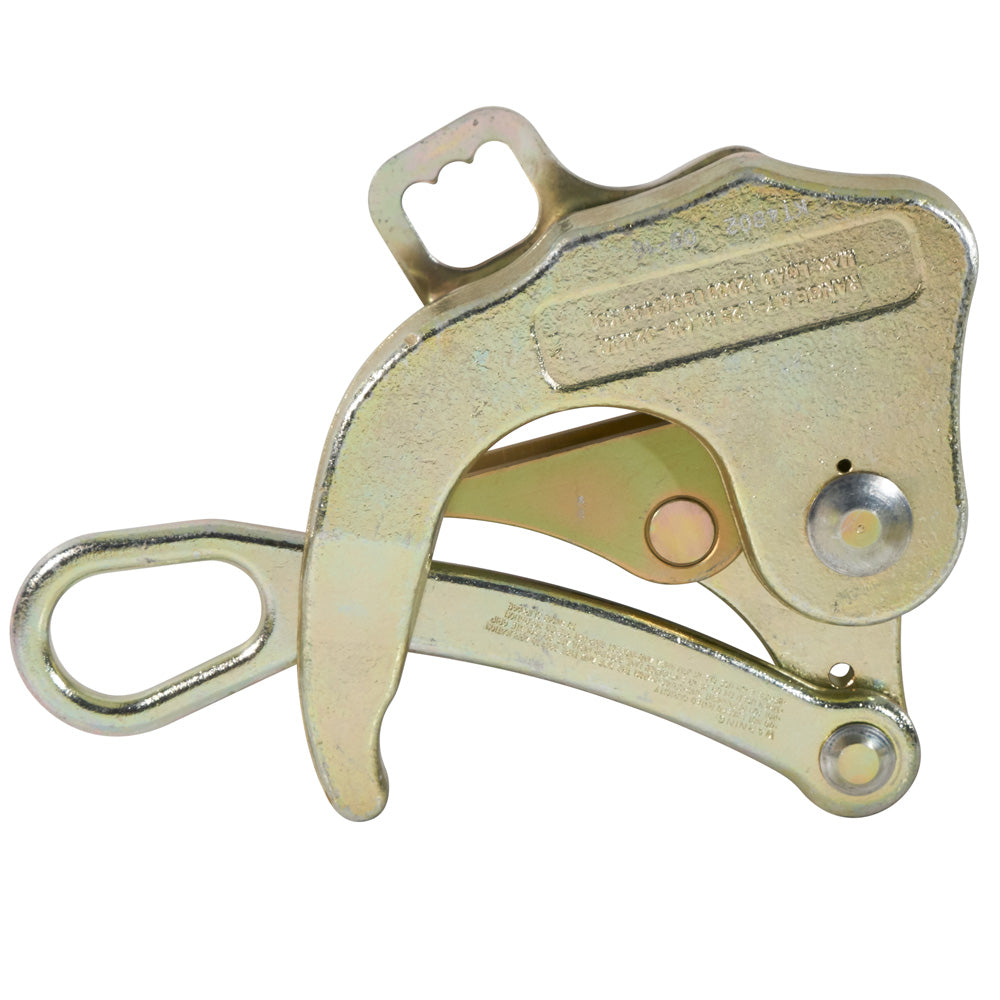

The Klein KT4802 Forged Parallel Jaw Grips with Hot-Latch's large round eyelet opening in the handle is perfect for accommodating a wide variety of hooks on hoists, winches and tackle blocks. The hot latch closes automatically to guard against grip accidently disengaging from the wire. The KT4802 has a jaw length of 5-1/8 - Inches.
Features
- Securely pulls 0.700 - 1.25-Inch (17.78 - 31/75 mm) diameter ACSR cables
- Round jaw provides maximum contact with the cable minimizing deformation
- Hot latch closes automatically to guard against grip accidently disengaging from wire
- Large eyelet opening in the handle to accommodate a wide variety of hooks on hoists, winches and tackle blocks
- Made in USA
- Maximum Safe Load of 12,000-pounds (5443 kg)
- Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
Specifications
| Type | Parallel Jaw Grip |
| Jaw Length | 5.125" (13 cm) |
| Cable Diameter | 0.7" to 1.25" (17.78 to 31.75 mm) |
| Jaw Type | Round |
| Maximum Safe Load | 12,000 lb (5443 kg) |
| Weight | 9.0 lb (4.1 kg) |
| Special Features | Hot Latch |
| Material | Steel |
| Cable Type | ACSR, AAC, Copper |
| Hot Latch | Y |
| Spring | Y |
| Locking Handle | N |
| Style_Name | Hot Latch |
| Swing Latch | N |
| Teeth Type | Coarse |
Warnings
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
- Do not exceed rated capacity.
- Grips are to be used for temporary installation, not for permanent anchorage.
