Parallel Jaw Grip 4502 Series with Hot Latch
- Free Shipping - U.S. Only
- In stock, ready to ship
- Backordered, shipping soon

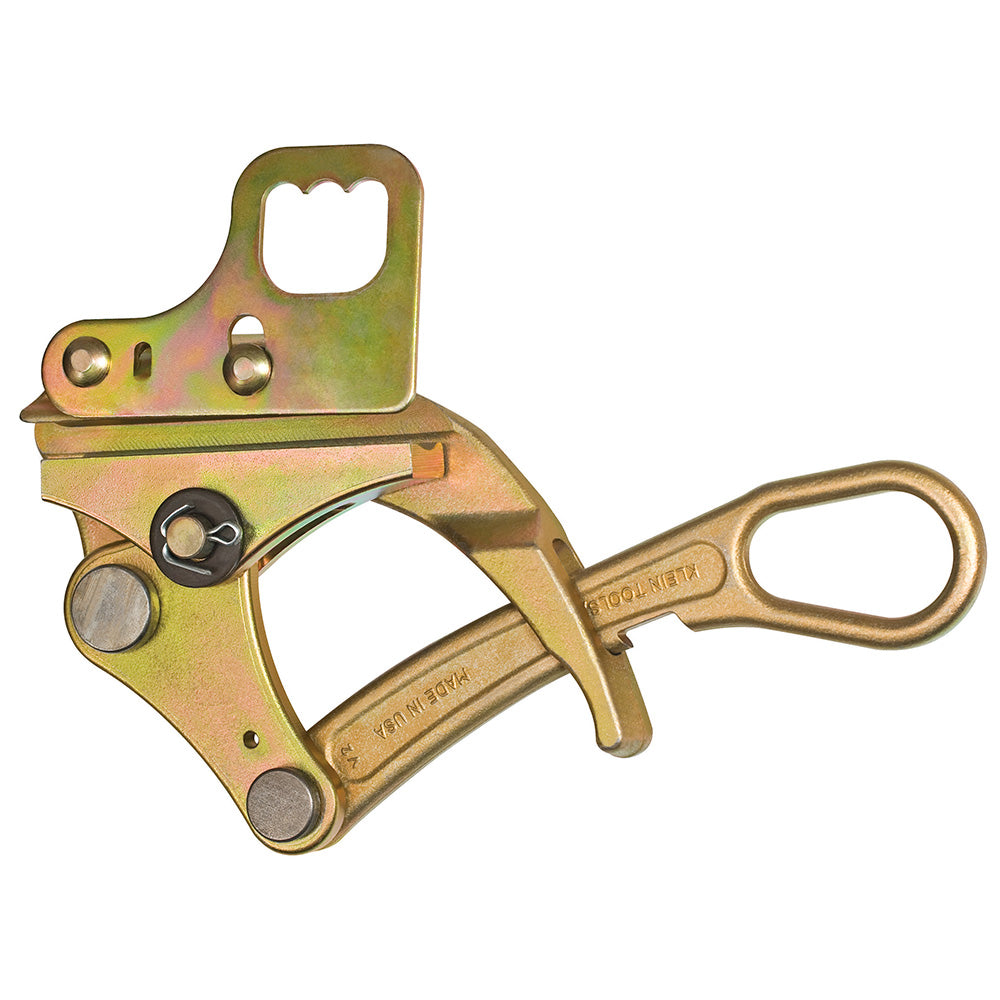

The Klein KT4502 Forged Parallel Jaw Grips with Hot-Latch's large round eyelet opening in the handle is perfect for accommodating a wide variety of hooks on hoists, winches and tackle blocks. The hot latch closes automatically to guard against grip accidently disengaging from the wire. The KT4502 has a jaw length of 3-Inches.
Features
- Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
- Round jaw holds 0.18 to 0.60-Inch (4.57 to 15.20 mm) diameter cable range
- Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
- Max Safe Load of 5000-Pound (2268 kg)
- Made in USA
- Weight: 3.75 pounds
- Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
Specifications
| Cable Type | ACSR, AAC, Copper |
| Type | Parallel Jaw Grip |
| Special Features | Hot Latch |
| Overall Width | 4" (10.2 cm) |
| Material | Steel |
| Jaw Length | 4" (10.2 cm) |
| Weight | 3.8 lb (1.7 kg) |
| Jaw Type | Round |
| Application | Accommodating a Wide Variety of Hooks on Hoists, Winches and Tackle Blocks |
| Overall Height | 1.5" (3.8 cm) |
| Overall Length | 11" (27.9 cm) |
| Cable Diameter | 0.18" to 0.6" (4.57 to 15.2 mm) |
| Maximum Safe Load | 5000 lb (2268 kg) |
| Hot Latch | Y |
| Spring | Y |
| Locking Handle | N |
| Style_Name | Hot Latch, Spring |
| Swing Latch | N |
| Teeth Type | Coarse |
Warnings
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
- Do not exceed rated capacity.
- Grips are to be used for temporary installation, not for permanent anchorage.
