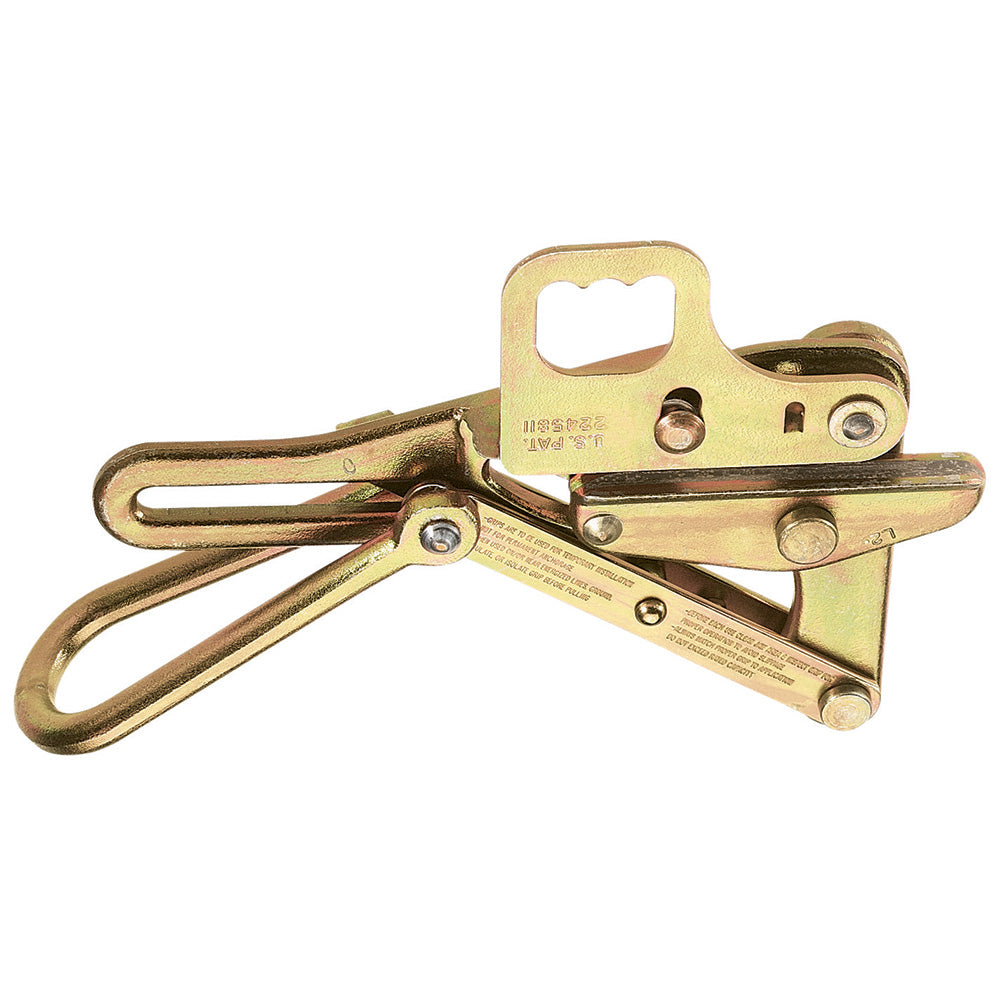

Knurled Parallel Jaw Grip 4-3/8-Inch Length
- Free Shipping - U.S. Only
- In stock, ready to ship
- Backordered, shipping soon
Longer knurled jaws achieve a firm hold, reducing possibility of slippage and damage to cable. Design includes a latch, plus a large-diameter eye that accommodates large hooks on hoists, winches and tackle blocks. When latch is closed, it helps maintain cable position in grip jaws.
Features
- Longer jaws achieve a firm hold, reducing possibility of slippage and damage to cable
- Design includes a latch, plus a large-diameter eye that accommodates large hooks on hoists, winches and tackle blocks
- When latch is closed, it helps maintain cable position in grip jaws
- Same as Cat. No. 1686-10, but with knurled jaws
- Made in USA
Specifications
| Jaw Type | Double V |
| Type | Parallel Jaw Grip |
| Application | Cable Pulling |
| Material | Steel |
| Weight | 4.6 lb (2.1 kg) |
| Maximum Safe Load | 10,000 lb (4536 kg) |
| Jaw Length | 4.375" (11.1 cm) |
| Special Features | Longer Jaw and Large Diameter Eye |
| Overall Length | 7.2" (18.3 cm) |
| Cable Diameter | 0.2" to 0.4" (5.08 to 10.16 mm) |
| Cable Type | Aircraft, Messenger, Guy Strand |
| Hot Latch | N |
| Spring | N |
| Locking Handle | N |
| Style_Name | Knurled Jaws |
| Swing Latch | N |
| Teeth Type | Coarse |
Warnings
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
- Do not exceed rated capacity.
- Grips are to be used for temporary installation, not for permanent anchorage.
