Grip for Large Diameter Conductors
- Free Shipping - U.S. Only
- In stock, ready to ship
- Backordered, shipping soon

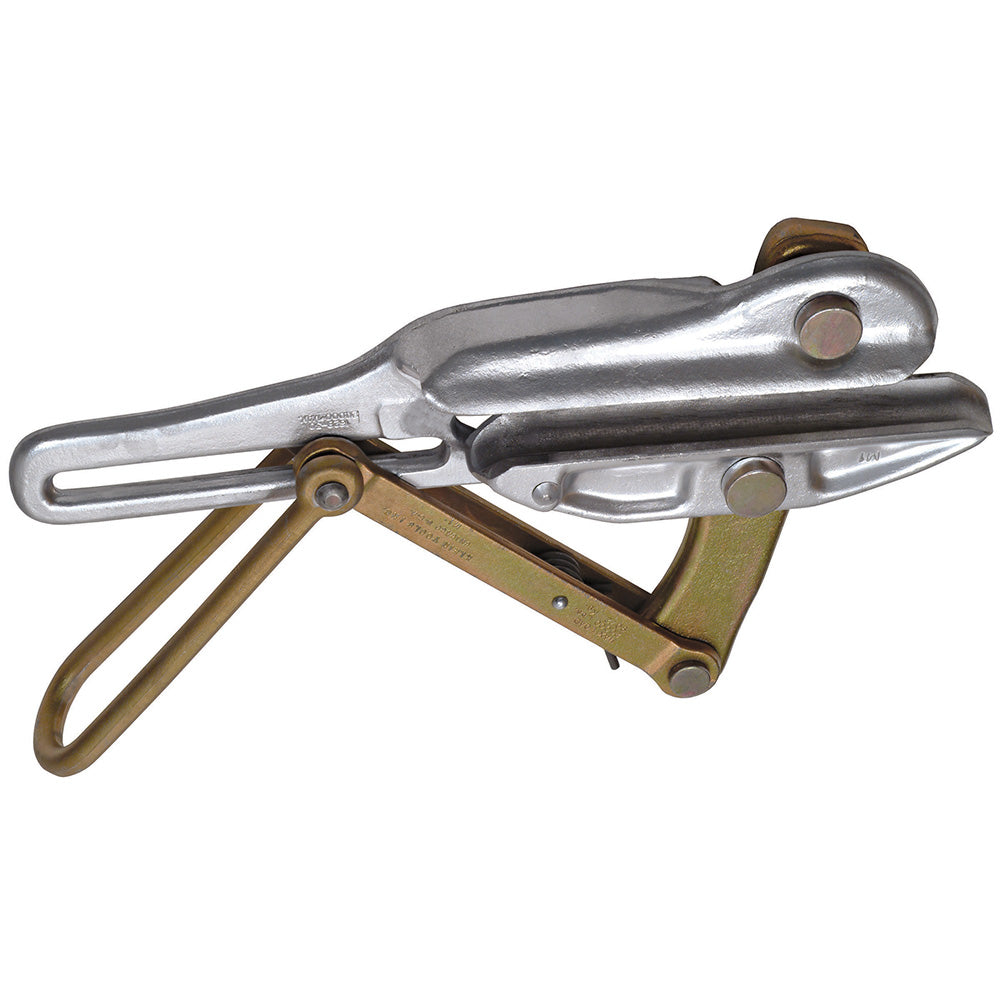

This Chicago® Grip is specifically made for ACSR, AAC and copper cabling with larger diameters. These non-returnable grips are special order only. When ordering, please specify exact outside cable diameter, circular mills with strand combination, or the manufacturer's code. Please allow 30 days for delivery.
Features
- Removable jaw allows for installation of cable
- Round jaws are provide maximum contact with the cable minimizing deformation
- Removable floating jaw held in place by a bolt swaged into the lever arm of the grip, secured by a nut and cotter pin
- These Made in USA grips are special order only. Please allow 30 days for delivery. These are not returnable.
- Jaw must be removed to insert cable
- Orders must specify exact outside diameter of cables, circular mills with strand combination, or manufacturer's code.
Specifications
| Cable Diameter | 0.95" to 1.89" (24.13 to 48 mm) |
| Type | Chicago Grip |
| Sub Brand | Chicago Grip |
| Weight | 29.03 lb (13.2 kg) |
| Special Features | These grips are special order only, please allow 30 days for delivery, not returnable -- Removable floating jaw held in place by a bolt swaged into the lever arm of the grip, secured by a nut and cotter pin -- Jaw must be removed to insert cable |
| Maximum Safe Load | 25,000 lb (11,340 kg) |
| Cable Type | ACSR, ACSS, ACSS-TW, AAC |
| Jaw Length | 10.75" (27.3 cm) |
| Jaw Type | Round |
| Locking Handle | Y |
| Hot Latch | N |
| Spring | Y |
| Swing Latch | N |
| Teeth Type | Smooth |
Warnings
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
- Do not exceed rated capacity.
- Grips are to be used for temporary installation, not for permanent anchorage.
