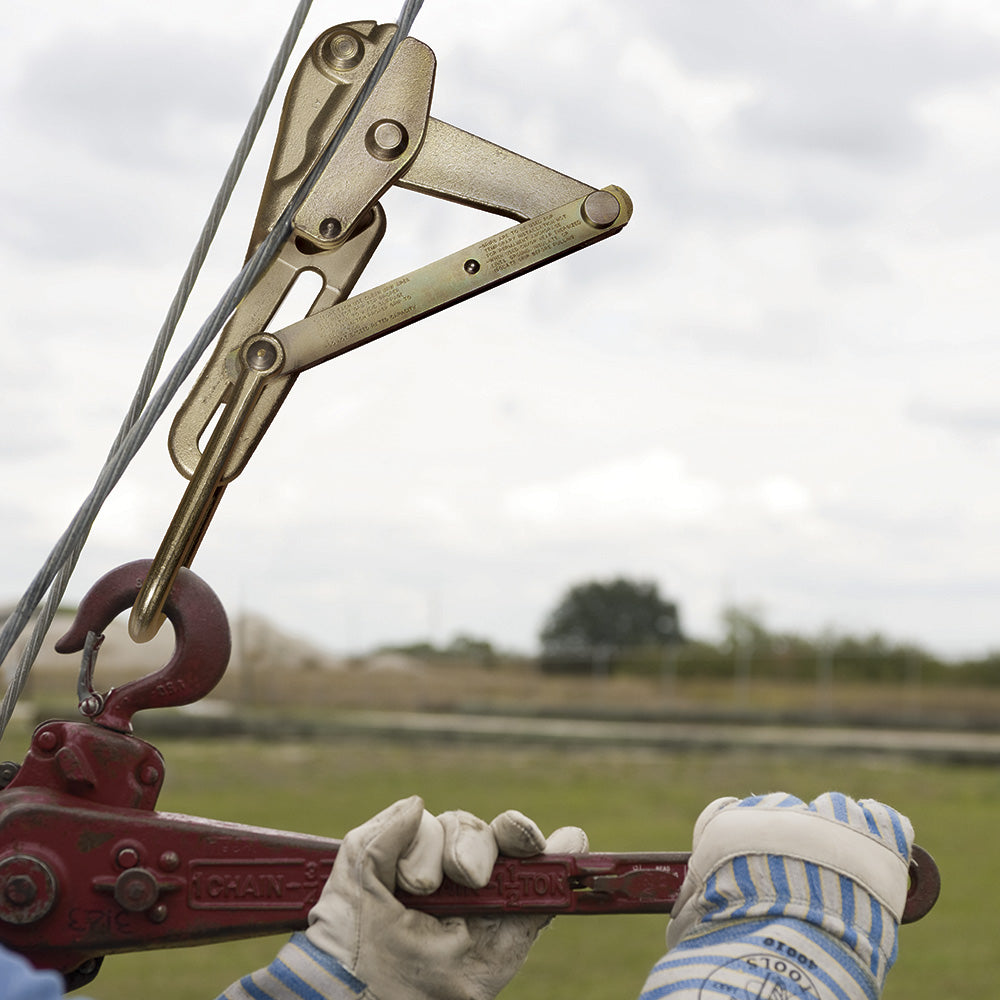

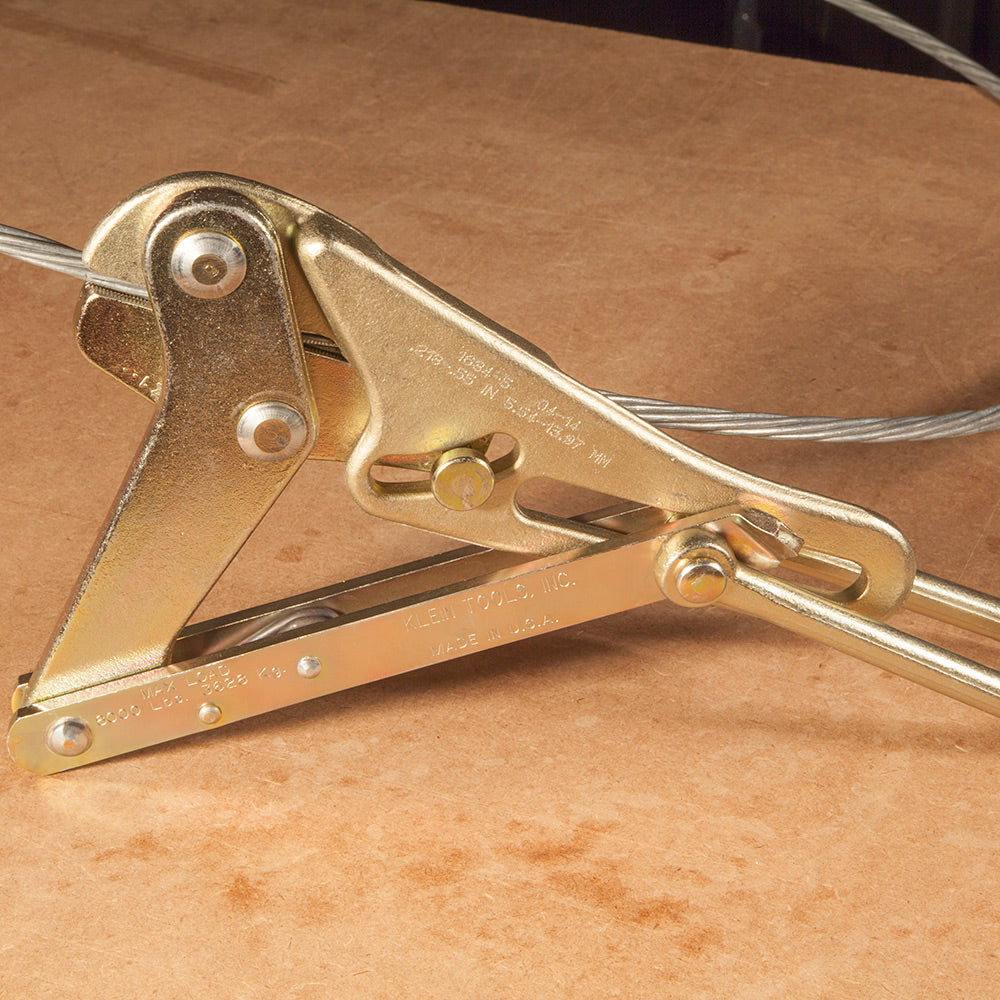

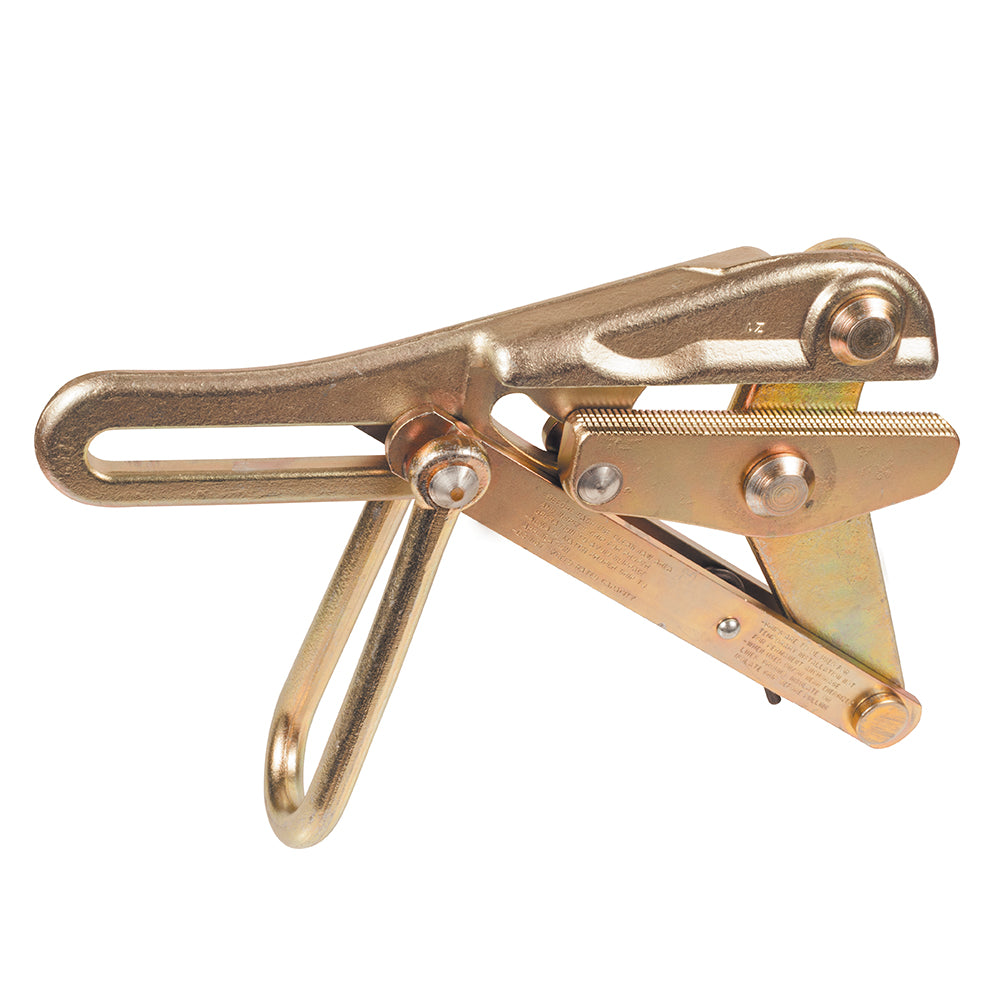

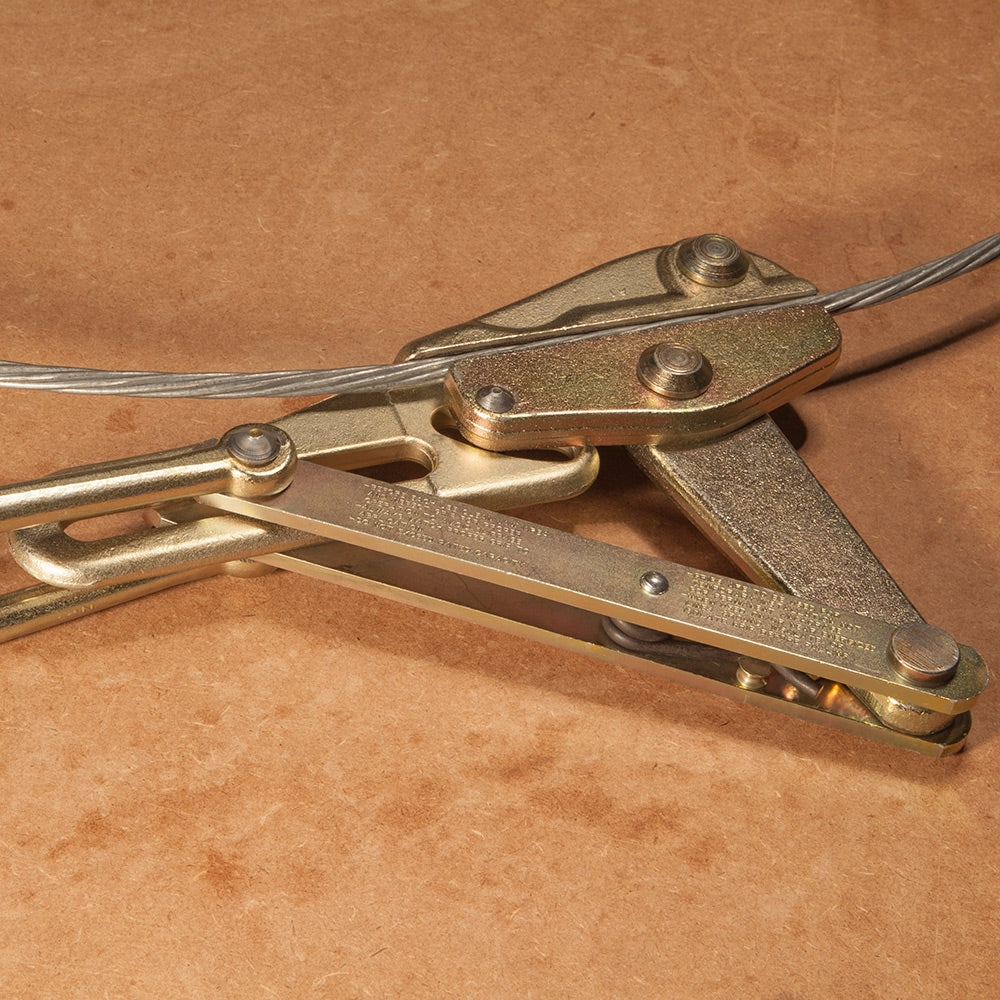

This Chicago Grip is designed specifically to work with coated guy wire. This authentic Klein Grip is manufactured, inspected and tested in the USA. Klein grips are made of drop-forged, quality US steel and heat treated for strength and durability.
Features

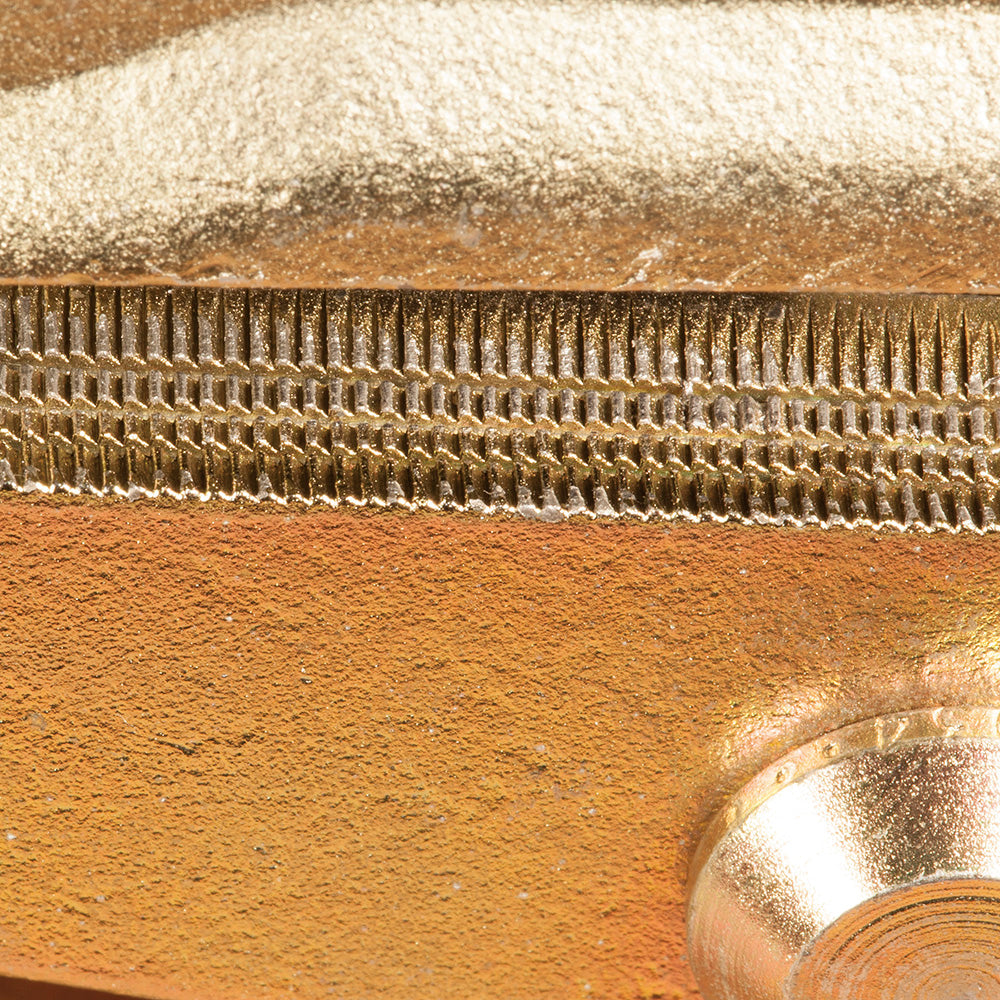

Aggressive sawtooth jaw profile resists build-up from galvanized coating on guy strand and EHS cables
5'' jaw length increases surface area contact with the cable, minimizing cable damage
Designed for cable sizes 0.218-Inch to 0.55-Inch (5.54 mm to 13.97 mm)
Manufactured from drop-forged, heat-treated steel for excellent durability with a spring that closes grip on cable helping to maintain initial position
Made in USA
Locking handle keeps jaw open while grip is placed on cable with a hot stick
Maximum Safe Load is 8000-Pound (3629 kg)
Specifications
Maximum Safe Load
8000 lb (3629 kg)
Overall Height
2.5" (6.4 cm)
Jaw Length
5" (12.7 cm)
Material
Alloy Steel
Overall Width
7.6" (19.3 cm)
Jaw Type
Round
Weight
6.0 lb (2.7 kg)
Special Features
Sawtooth Jaw Profile Resists Build-up
Type
Chicago Grip
Cable Diameter
0.218" to 0.55" (5.54 to 13.97 mm)
Cable Type
Aircraft, EHS, Messenger, Guy Strand
Application
Wire Pulling
Standard
—
Overall Length
13.3" (33.8 cm)
Locking Handle
Y
Hot Latch
N
Spring
Y
Style_Name
No Chain
Swing Latch
N
Teeth Type
Aggressive
Warnings
Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
When used on/near energized lines, ground, insulate, or isolate grip before pulling.
Do not exceed rated capacity.
Do not exceed rated capacity.
Grips are to be used for temporary installation, not for permanent anchorage.
