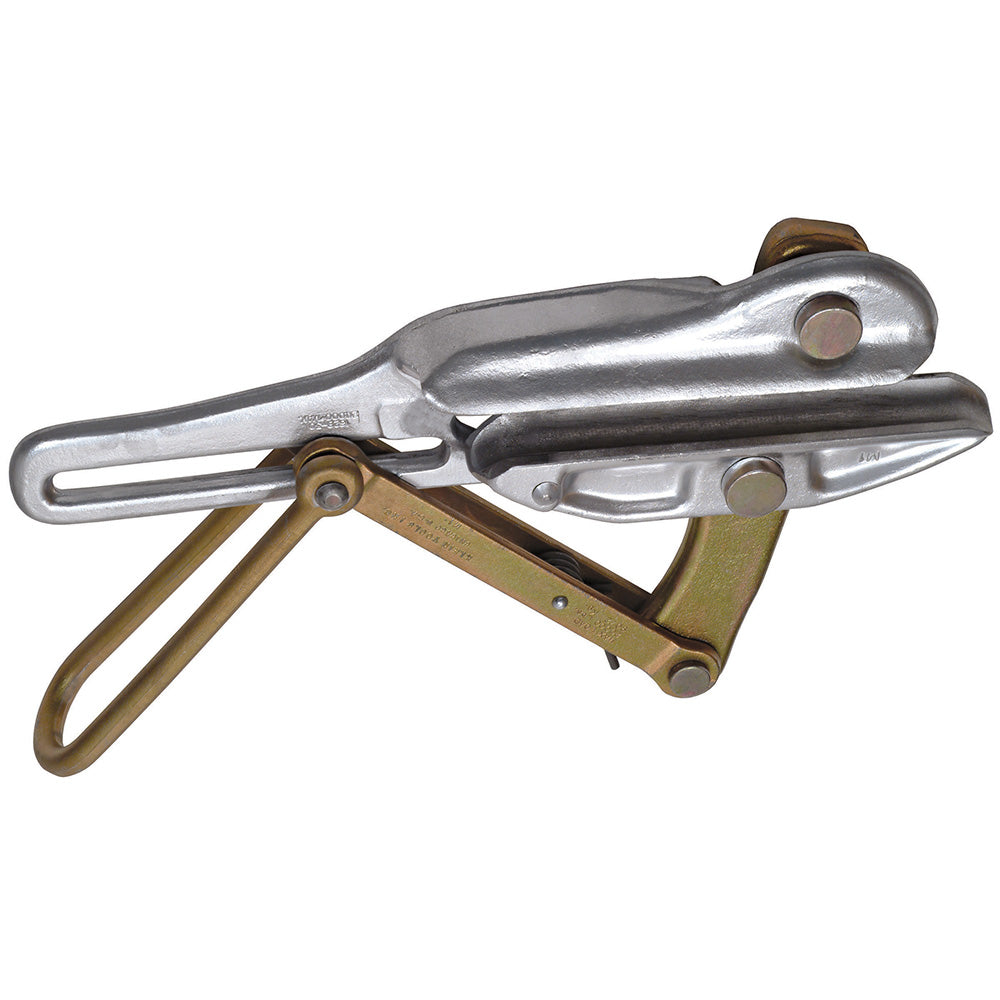

Chicago® Grip Bell-System Type H Grip
- Free Shipping - U.S. Only
- In stock, ready to ship
- Backordered, shipping soon
The Klein Tools 1628-16AT Chicago Grip is identical to a Bell-System type H Strand Puller. It is equipped with a chain, toggle and shackle to keep the grip from falling off the cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Features
- Identical to Bell-System type ''H'' strand puller, with max safe load of 15,000-Pound (6803 kg)
- Equipped with chain, toggle and shackle
- Outside diameter of support wire includes thickness of polyethylene coating
- For support wire 0.134 and larger, refer to 1659 series
- Made in USA
Specifications
| Type | Chicago Grip |
| Cable Type | Aircraft, EHS, Messenger, Guy Strand |
| Maximum Safe Load | 15,000 lb (6803 kg) |
| Jaw Type | Double V |
| Weight | 15.8 lb (7.17 kg) |
| Cable Diameter | 0.31" to 0.62" (7.87 to 15.75 mm) |
| Special Features | H Strand Puller -- Equipped with a Chain, Toggle and Shackle |
| Jaw Length | 7.25" (18.4 cm) |
| Sub Brand | Chicago Grip |
| Locking Handle | Y |
| Hot Latch | N |
| Spring | Y |
| Swing Latch | N |
| Teeth Type | Smooth |
Warnings
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
- Do not exceed rated capacity.
- Grips are to be used for temporary installation, not for permanent anchorage.
