HVAC Electrical Test Kit
- Free Shipping - U.S. Only
- In stock, ready to ship
- Backordered, shipping soon
Klein Tools HVAC Electrical Test Kit features Cat. No. CL320 Auto-Ranging, TRMS (True Root Mean Square), 400A HVAC Clamp Meter; Cat. No. IR07 Dual IR and Probe Thermometer, for both surface and air temperature measurements; and Cat. No. NCVT3P Dual Range Non-Contact Voltage Tester With Flashlight, for detection of AC voltage from 12 to 1000V with visual and audible indicators. Included is a convenient carrying pouch, test leads with CAT III/CAT IV safety caps, thermocouple, and all batteries.
Features
- HVAC Kit with testers for the HVAC Professional: HVAC Digital Clamp Meter, Dual IR/Probe Thermometer, and Dual Range Non-Contact Voltage Tester with Flashlight

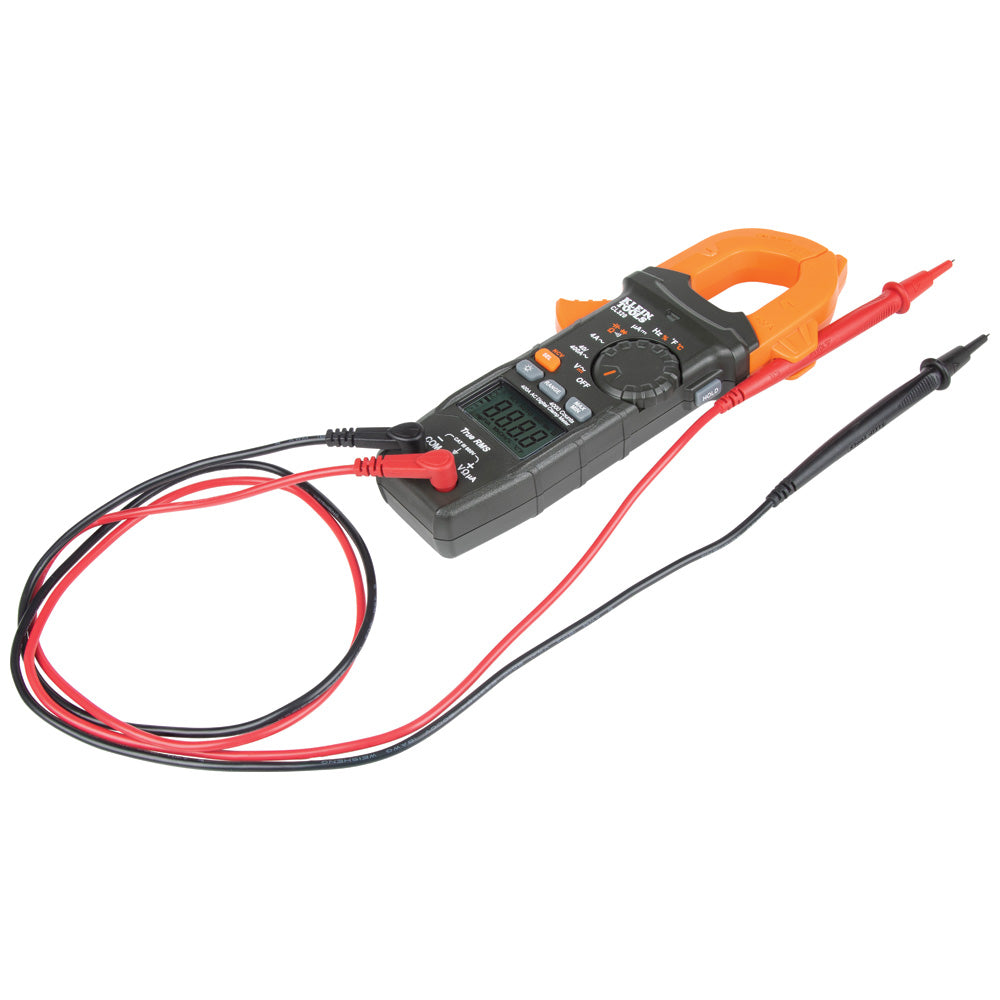

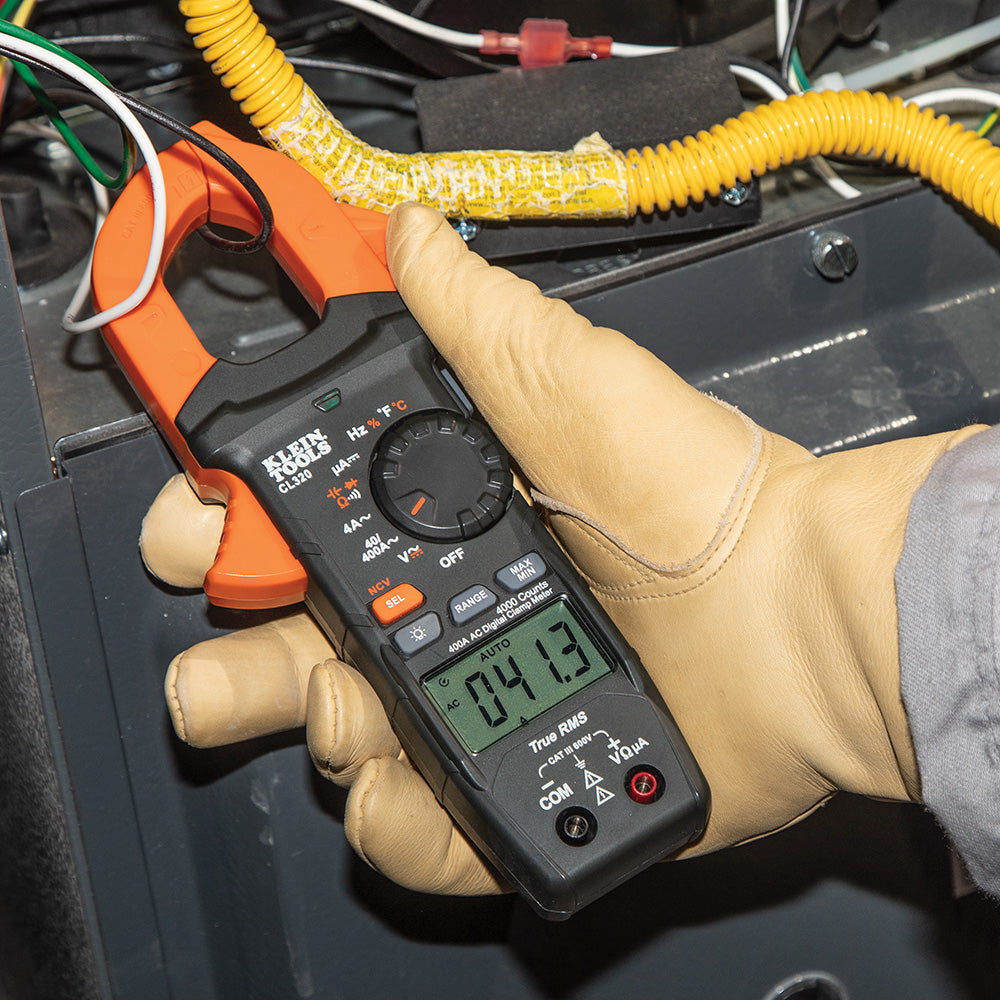

- Cat. No. CL320 HVAC Clamp Meter with TRMS technology measures AC current, NCVT, AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, continuity, and temperature

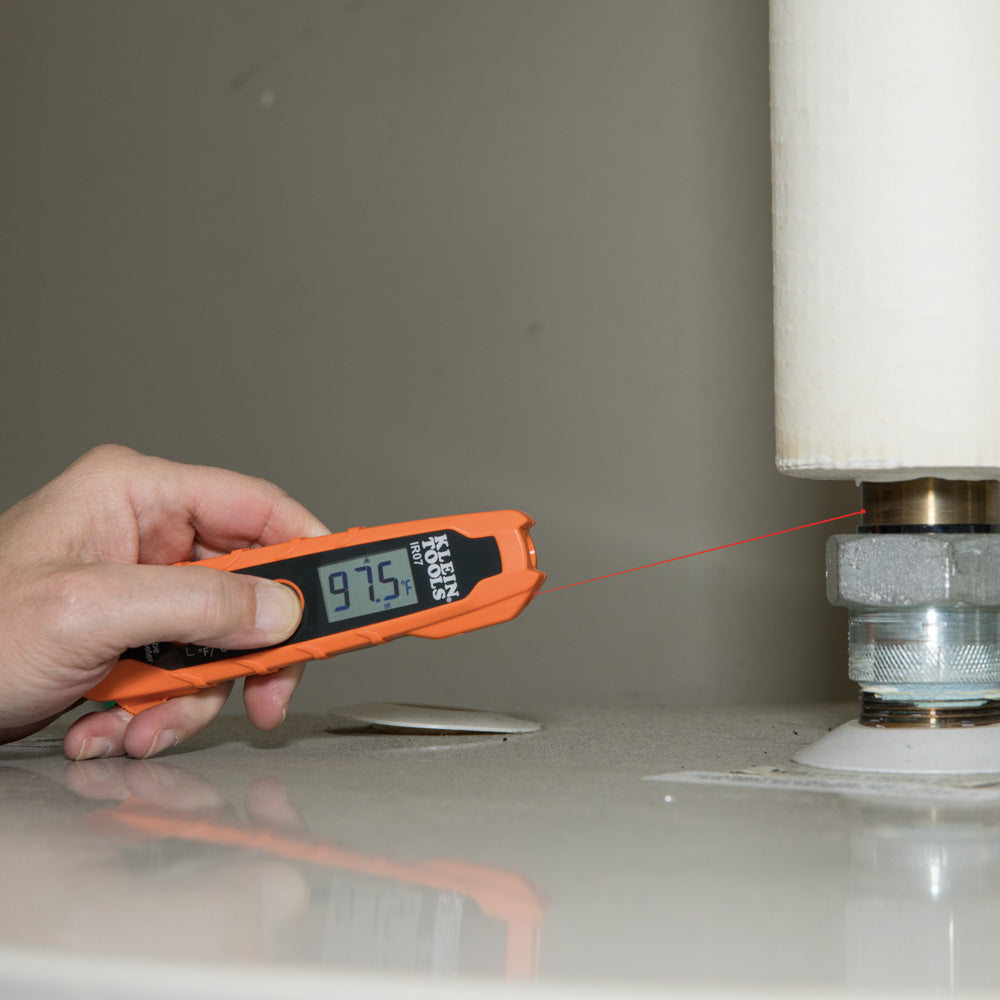

- Cat. No. IR07 Dual IR Probe and Thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius); measure surface temperature with Infrared Thermometer (DS ratio 8:1)

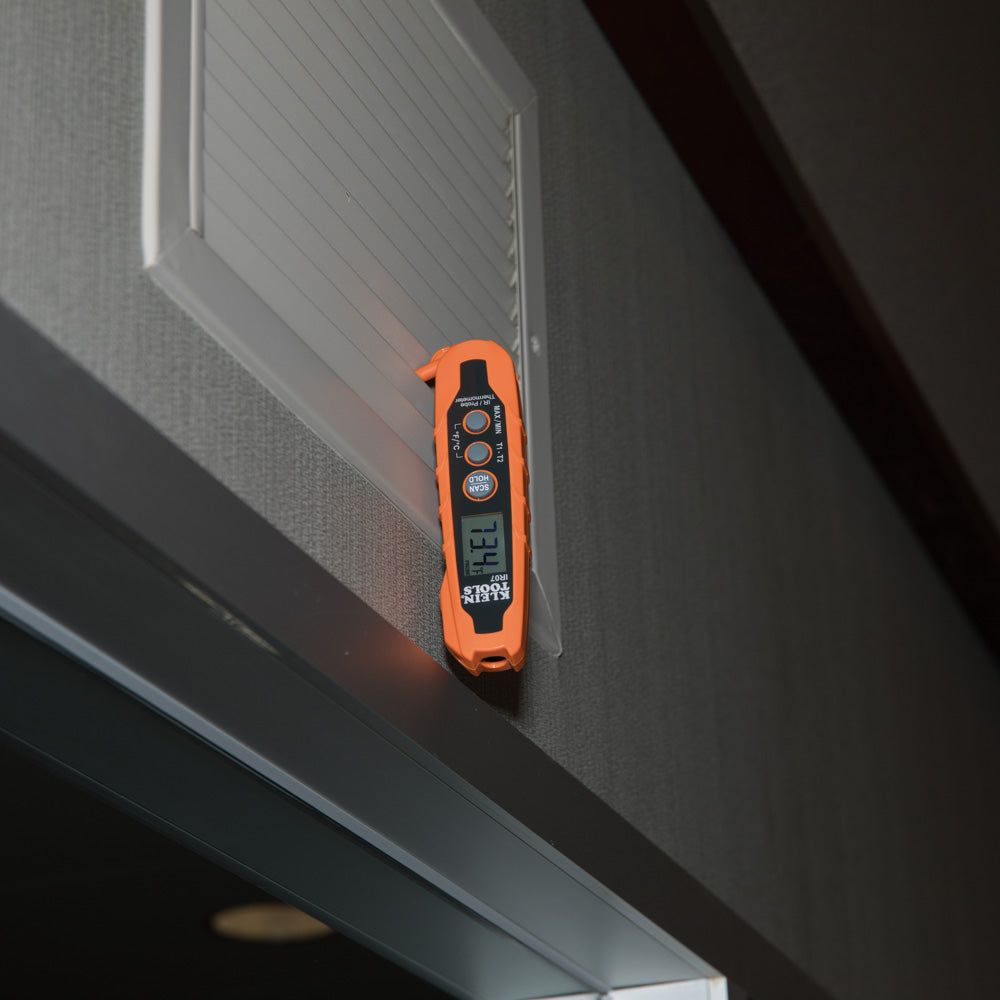

- Measure air vents and duct temperature using temperature probe with hands-free hanging hook; calculate differential temperature (T1-T2) for both IR and probe temperatures

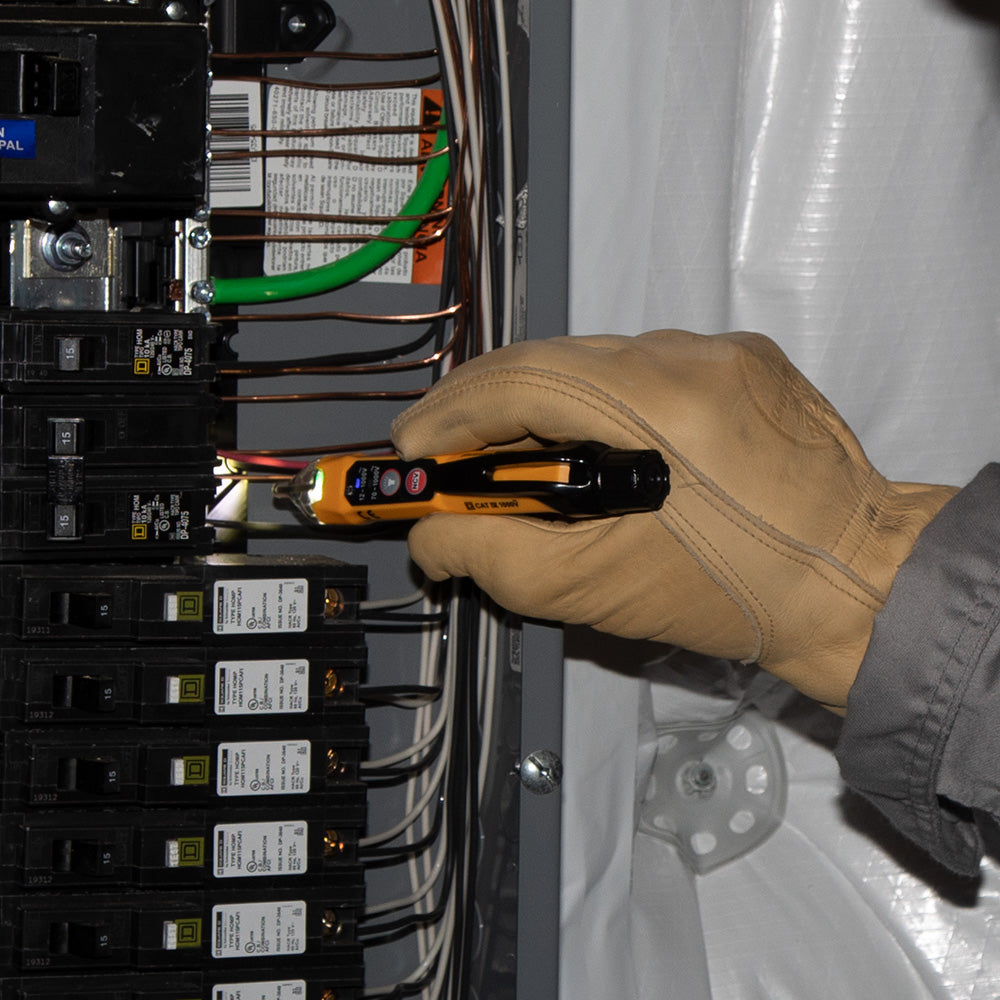

- Cat. No. NCVT3P is dual-range and detects from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
- Non-Contact Voltage Tester detects voltage with simultaneous visual and audible voltage indicators
- Bright flashlight illuminates work area and may be used independent of voltage detection function; CAT IV 1000V rating provides expanded operation and protection
- IR07 Thermometer is not a medical device and is NOT intended for use on people or animals
Specifications
| Standard | Cat. No CL320: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified; Cat. No. NCVT3P: CAT IV 1000 |
| Drop Protection | 6.6' (2 m) |
| Voltage | Cat. No. CL320: 600V AC/DC; Cat. No. NCVT3P: 1000V AC |
| Overall Width | 3.5" (8.9 cm) |
| Display | 4000 Count Backlit LCD |
| Included | CL320 Digital Clamp Meter with Test Leads and Thermocouple; IR07 Dual IR and Probe Thermometer; NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight; Carrying Pouch; Instructions; and All Required Batteries |
| Type | HVAC Testers |
| Application | HVAC Electrical and Temperature Testing |
| Batteries | 7 x AAA |
| Weight | 1.575 lb (0.7 kg) |
| Functions | TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature |
| Overall Length | 8.45" (21.5 cm) |
| Jaw Size | 1.6" (4.1 cm) |
| Overall Height | 1.5" (3.8 cm) |
| Special Features | Cat. No. CL320: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology; CAT. No. NCVT3P: NCVT with flashlight; Cat.No. IR07 Both IR and Probe Temperature |
| Material | ABS/Electronics |
| DC Voltage | 600V |
| Ingress Protection | — |
| AC Voltage | 600V |
| Current | 400 A AC |
| Frequency | 10 Hz to1 MHz |
| DC Micro-Amp | 200 μA |
| Ohms (Resistance) | 40MO |
| Capacitance | 4000 µF |
| Auto-Power Off | Yes |
Warnings
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Do not attempt to measure resistance or continuity on live circuits.
- Before each use verify meter operation by measuring a known voltage or current.
- Before each use verify meter operation by measuring a known voltage or current.
- Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
