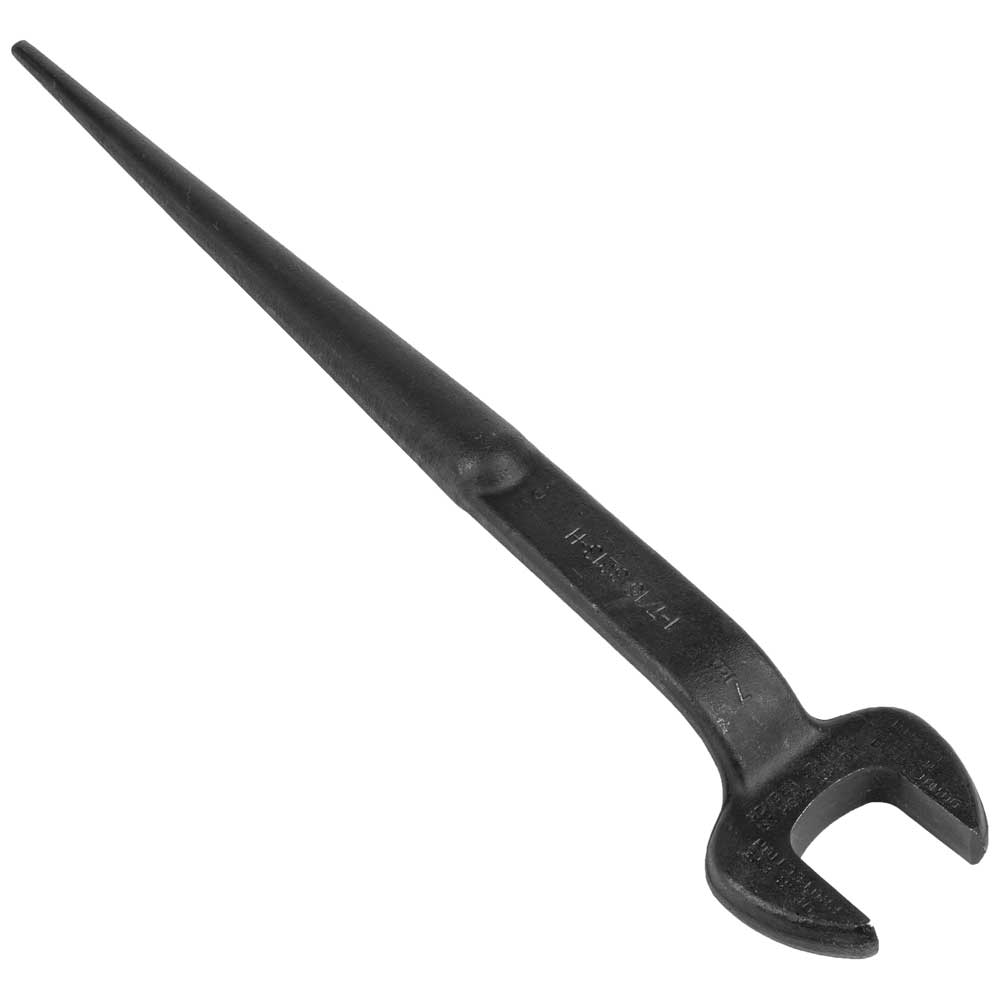

Forged from select alloy steel, the Klein Tools 1-7/16-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. It's designed for use with 7/8-Inch bolts and utility nut types. The extra-duty head area gives maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes.
Features
Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
Extra heavy-duty head area gives maximum strength and durability

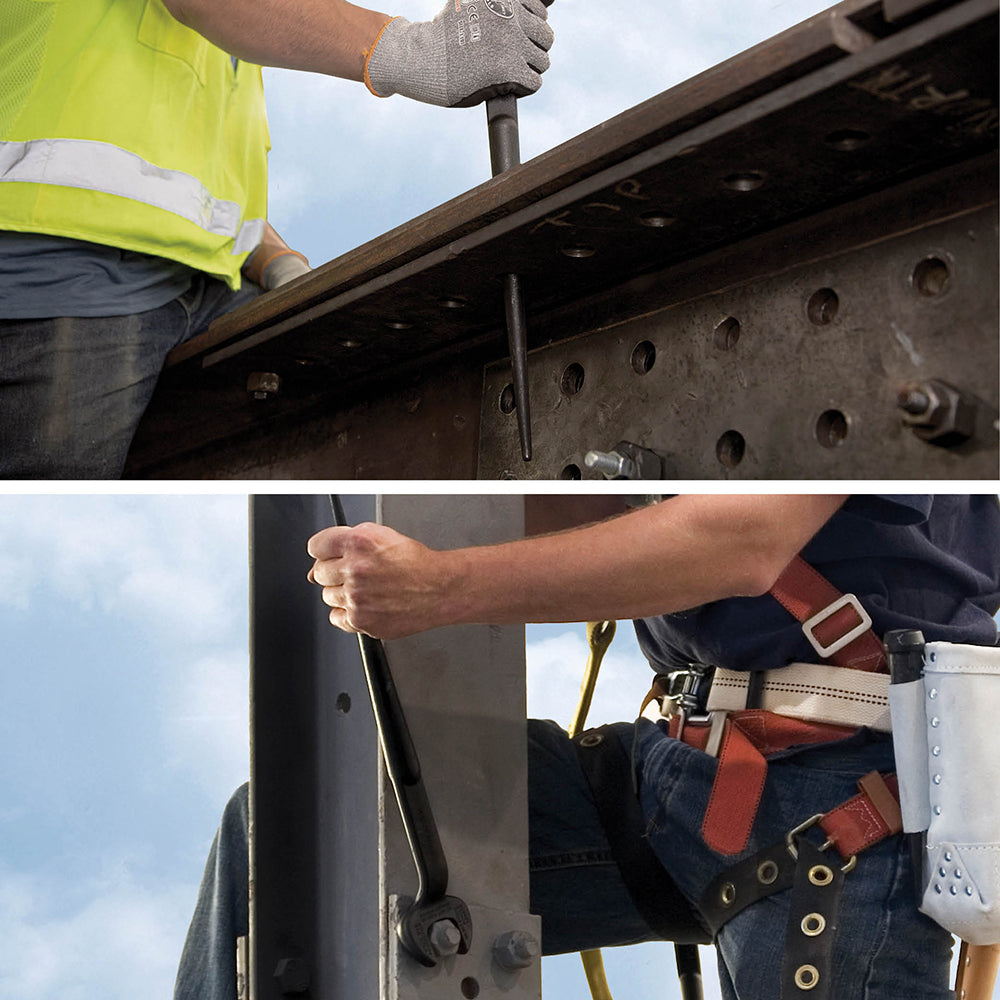

Continuous taper of the handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
Extra-large hub area works on larger diameter holes better than other wrenches

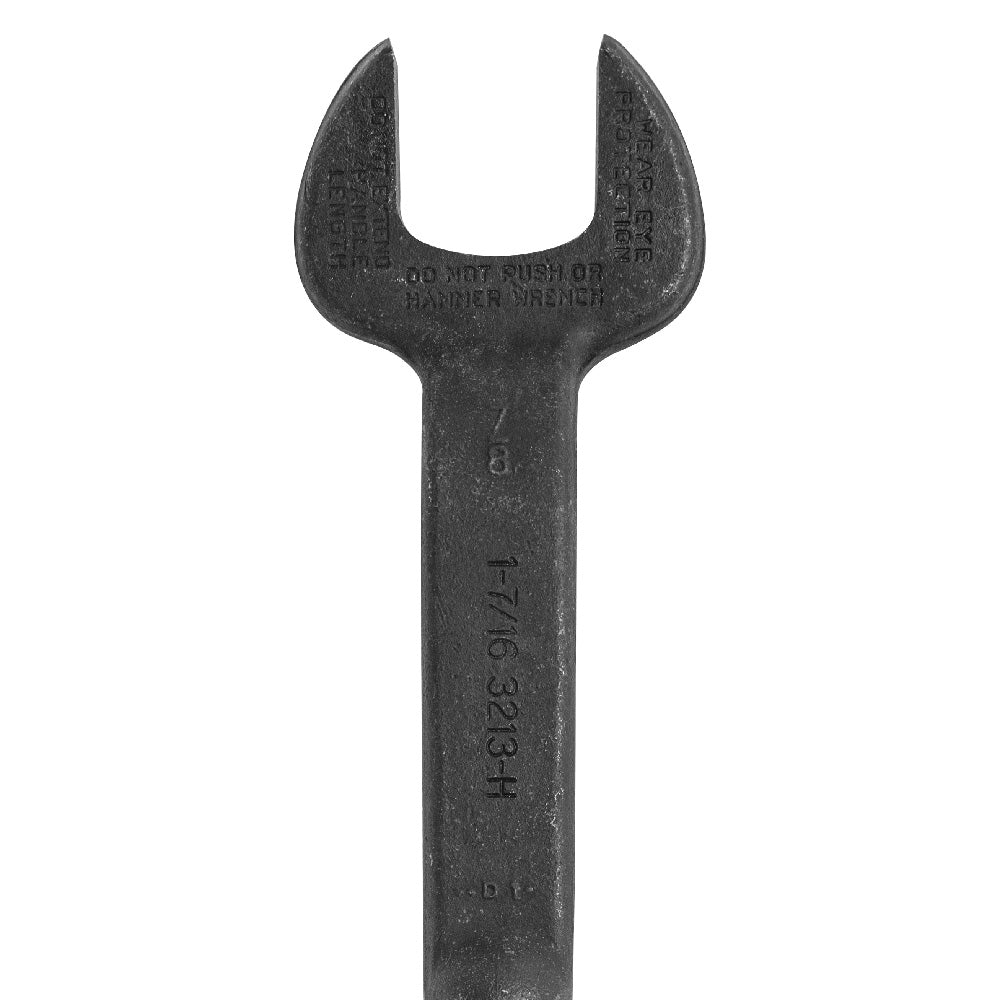

Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
American Bridge design
Specifications
Overall Height
1" (2.54 cm)
Weight
2.7 lb (1.2 kg)
Application
Connecting Steel Members
Nut Type
U.S. Heavy
Overall Length
17.375" (44.1 cm)
Head Width
3" (7.6 cm)
Special Features
Extra Heavy-Duty Head for Maximum Strength
Taper Diameter
1-1/8" to 9/32" (2.9 to 0.7 cm)
Type
Spud Wrench
Material
Alloy Steel
Nominal Opening
1-7/16" (3.7 cm)
Offset Angle
60°
Overall Width
3" (7.6 cm)
Finish
Black Oxide with a Rust Preventative
Style_Name
Standard
Heavy Nut Size
7/8" (2.2 cm)
Regular Nut Size
—
Square Nut Size
—
Warnings
Always wear approved eye protection.
Do NOT push or hammer wrench.
Do NOT extend handle length.
Do NOT extend handle length.
