Ratchet-action design of this heavy-duty Ratcheting Cutter provides maximum leverage with minimum effort. Forged, heat-treated, shear-type blades cut steel and ACSR. Long steel handles have heavy vinyl grips for comfort and slip-resistance. Blade-advance knob quickly rotates the blade to engage the cable or other material being cut.
Features
Ratchet-action design provides maximum leverage with minimum effort for heavy-duty use
Cuts steel and ACSR
Forged, heat-treated, shear-type blades, plus a 24-Inch (610 mm) long steel handles with heavy vinyl grips for comfort and slip-resistance

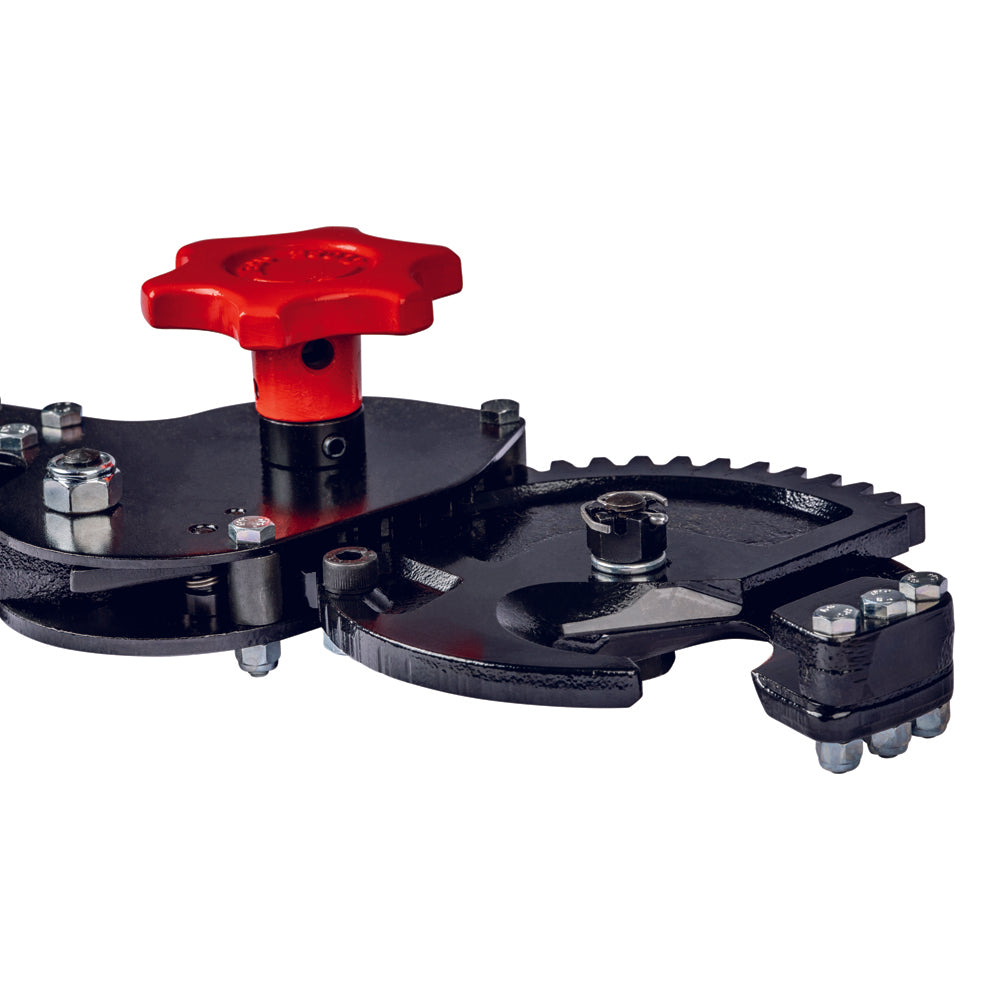

Blade-advance knob for fast rotation of the blade to engage the cable or other material being cut
Quick-release mechanism allows for removal of the cable or rod before completion of the cut, if desired
Not designed for cutting EHS Guy Strand or reinforcement rod
Specifications
Overall Length
28" (71.1 cm)
Handle Color
Yellow
Steel Cable Maximum Capacity
1-1/4" (31.8 mm) Diameter ACSR, ACAR, 7/16" (11.1 mm) Diameter Common Guy Strand, 5/8" (15.9 mm) Diameter Steel Wire Rope, 1/2" (12.7 mm) Diameter Steel Rod (C.R.S. SOFT)
Weight
14.0 lb (6.4 kg)
Soft Cable Maximum Capacity
2-1/4" (57.2 mm) Diameter, 750 MCM Diameter, Copper or Aluminum
Type
Cable Cutter
Style_Name
Heavy Duty
Warnings
Always wear approved eye protection.
NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
