Designed for professional cable crimping applications, this tool provides 12 tons of force to get the job done fast. It crimps copper, aluminum and ACSR. The head rotates 360 degrees for position flexibility. Compatible with industry standard U-style dies. Four working lights illuminate darker spaces. Includes crimper, C-style head and a carrying case.
Features
12 tons of force crimp copper, aluminum and ACSR
360-degree rotating head for flexibility in crimping positions
Green light indicates full pressure confirming a good crimp has been made

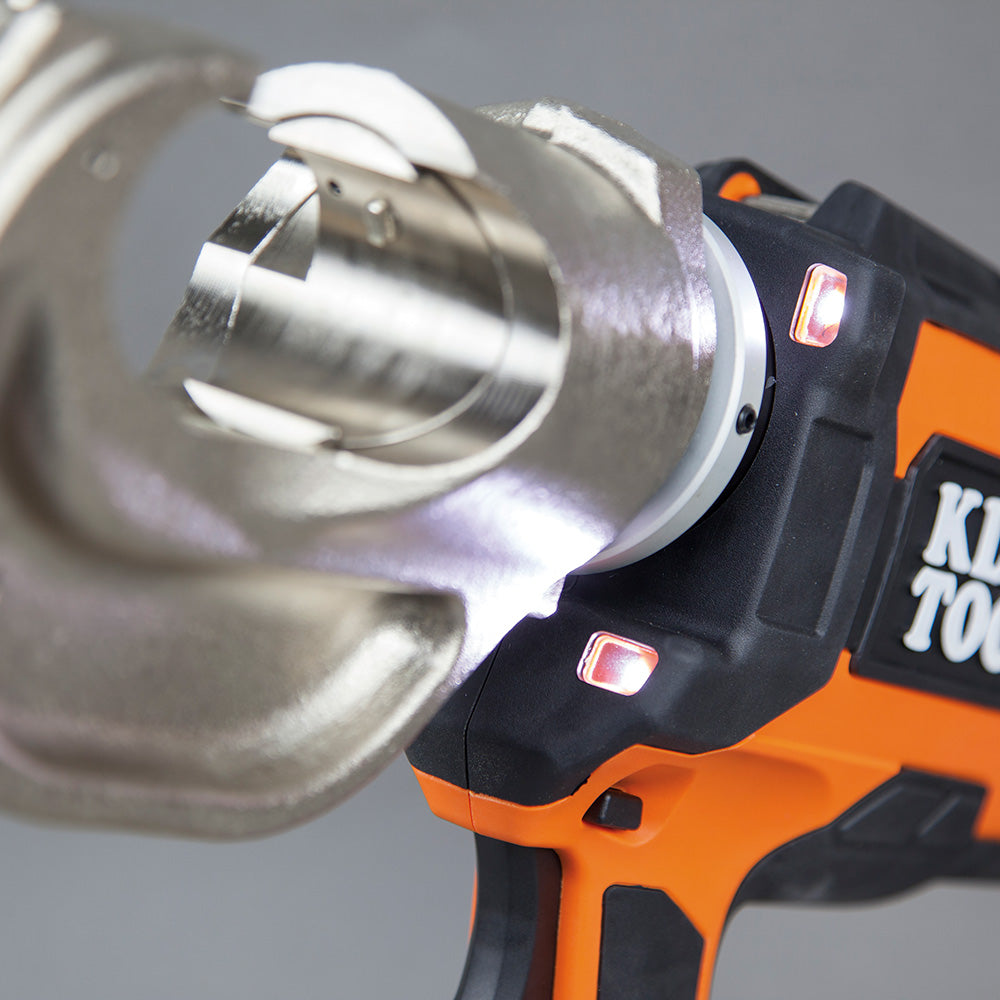

Four working lights for dark spaces
Compatible with industry standard U-style dies
Safety lockout switch
Powered by a DeWALT 20V lithium-ion battery

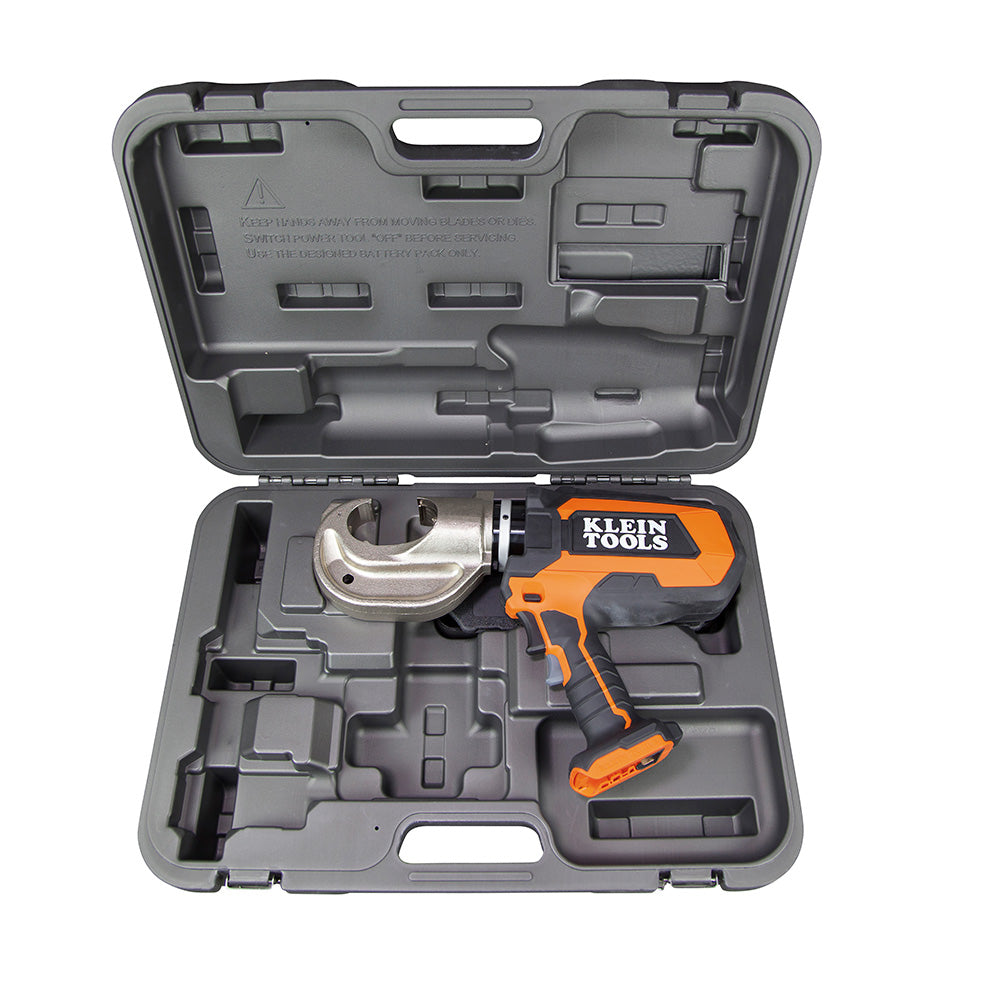

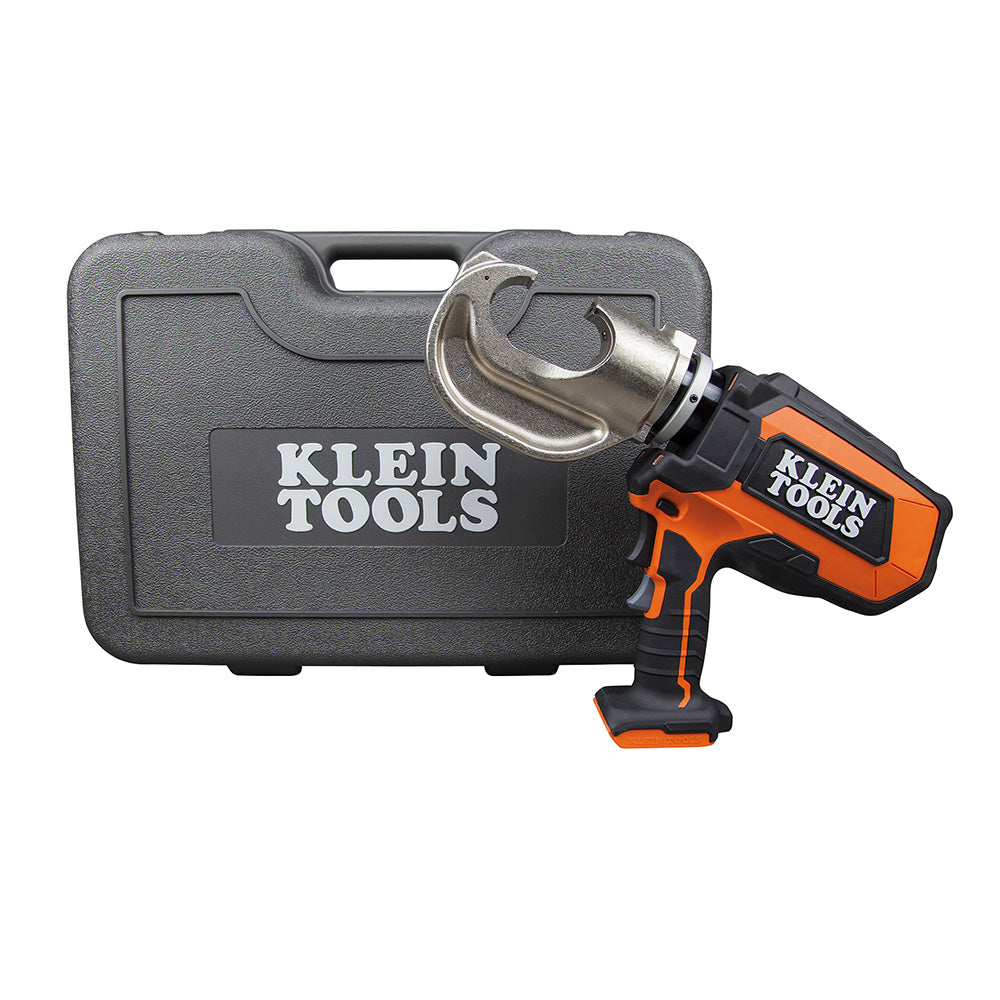

Includes tool and case
DeWALT is a registered trademark of the Black & Decker corporation
Specifications
Material
ABS, PA6, GF, TPE
Type
Battery Operated
Overall Width
17.063" (43.3 cm)
Application
Cable Crimping
Overall Length
22.625" (57.5 cm)
Overall Height
6.578" 16.7 cm)
Special Features
Powered by DeWALT 20V Lithium-ion Batteries
Weight
24.5 lb (11.1 kg)
Bolt Maximum Capacity
—
Included
Crimper; C-Style Head; Case
Maximum Cable Capacity (ACSR)
556 MCM
Maximum Cable Capacity (Copper)
8 AWG to 750 MCM
Maximum Cable Capacity (Aluminum)
8 AWG to 750 MCM
Maximum Cable Capacity (Guy Strand)
—
Battery Life
—
Voltage
20V
Standard
—
Batteries
Lithium-Ion
Style_Name
12 Ton Bare Tool with Case
Battery Weight
—
Number of Batteries
—
Lithium Battery Package
—
Warnings
Always use approved eye protection.
Do not use to pry or chisel.
Not insulated. Will not protect against electrical shock.
Not insulated. Will not protect against electrical shock.
